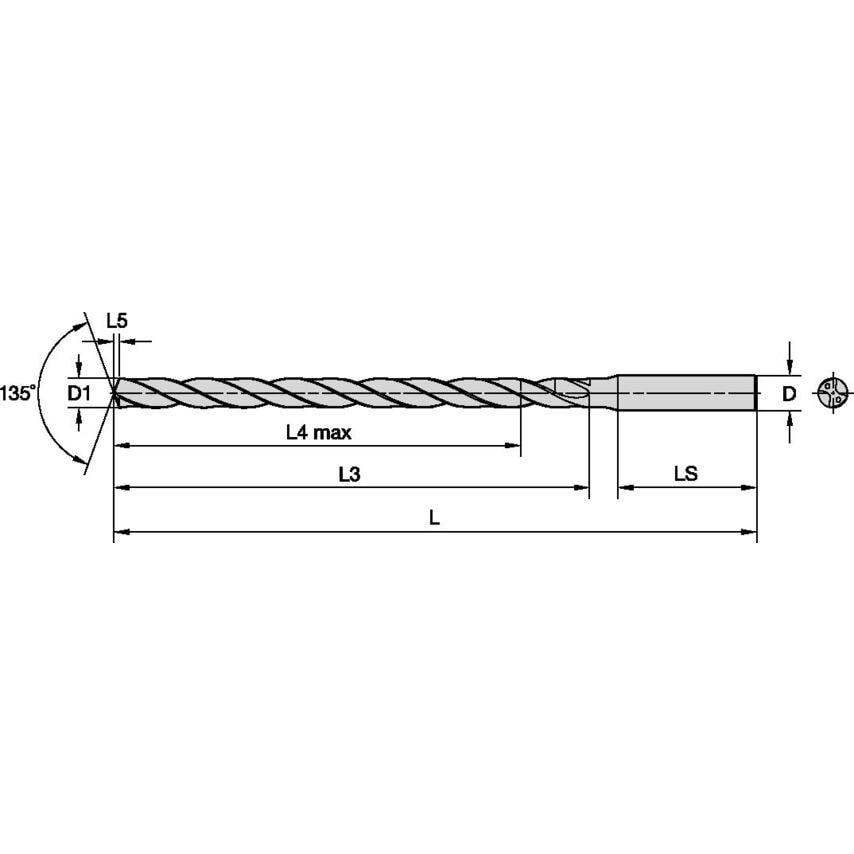

HP Beyond Four-Margin, Long-Length Drills Through Coolant 12 x D
High-Performance Solid Carbide Drills
| Drill Diameter | 5.5000mm |
| MFR Part No. | 4169253 |
| Overall Length | 125mm | 125.0000mm |
| Assembly Length | 87.968mm |
| Coolant Supplied | Yes |
| Adapter / Shank / Bore Diameter | 6.0000mm |
| Adapter Type | Cylindrical |
| Hand Preference | Right |
| Helix Type | Right Hand Helix/Flute |
| Primary Material | Steel |
| Functional Length | 123.9680mm |
| Number of Flutes | 2 |
| Adapter Style | Straight-Cylindrical |
| Drill Point | 1.032mm |
| Finish/Coating | TiAlN |
| Flute Construction | Helical Flute |
| Material | Carbide |
| Shank Length | 36.0000mm |
| Clamping Length | 36mm |
| Unit Measured | Metric |
| Drill Diameter Tolerance | 0.004000 to 0.016000mm |
| Flute Length | 84mm | 84.0000mm |
| Drill Depth | 71mm | 71.0000mm |
| Helix Angle | 27.925 |
