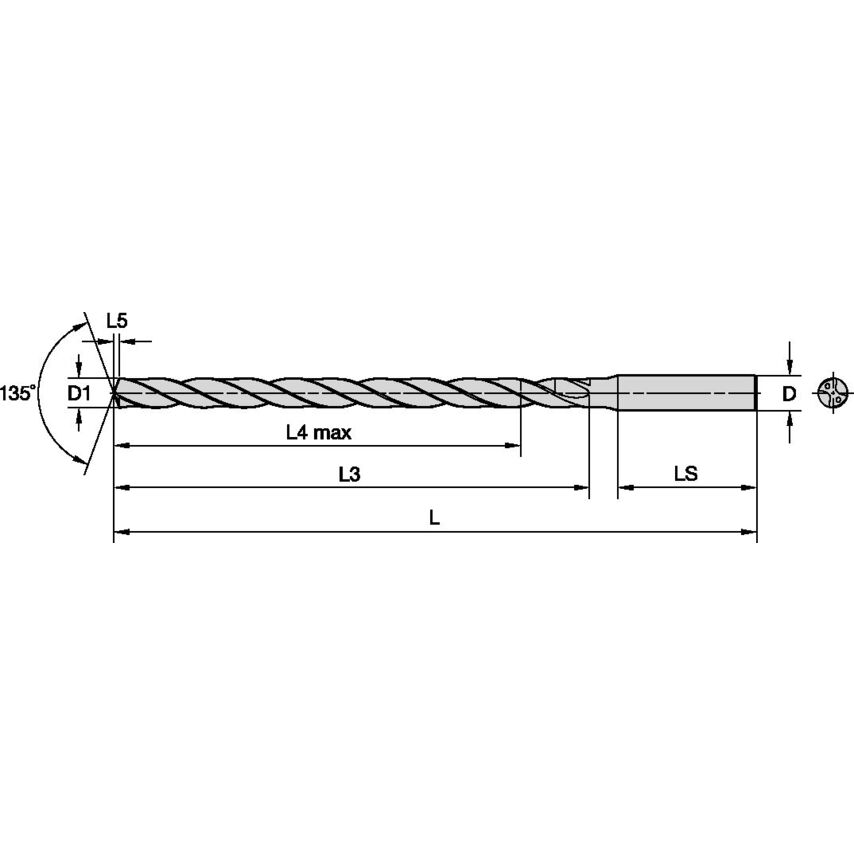

HP Beyond Four-Margin, Long-Length Drills Through Coolant 12 x D
High-Performance Solid Carbide Drills
| Unit Measured | Metric |
| Finish/Coating | TiAlN |
| Hand Preference | Right |
| Drill Diameter Tolerance | 0.006000 to 0.021000mm |
| Number of Flutes | 2 |
| Primary Material | Steel |
| Drill Depth | 117mm | 117.0000mm |
| Helix Type | Right Hand Helix/Flute |
| Adapter Style | Straight-Cylindrical |
| Functional Length | 183.4250mm |
| Drill Diameter | 8.4330mm |
| Adapter / Shank / Bore Diameter | 10.0000mm |
| MFR Part No. | 4169277 |
| Assembly Length | 143.425mm |
| Flute Construction | Helical Flute |
| Coolant Supplied | Yes |
| Shank Length | 40.0000mm |
| Drill Point | 1.575mm |
| Clamping Length | 40mm |
| Adapter Type | Cylindrical |
| Helix Angle | 27.451 |
| Material | Carbide |
| Overall Length | 185mm | 185.0000mm |
| Flute Length | 137mm | 137.0000mm |
