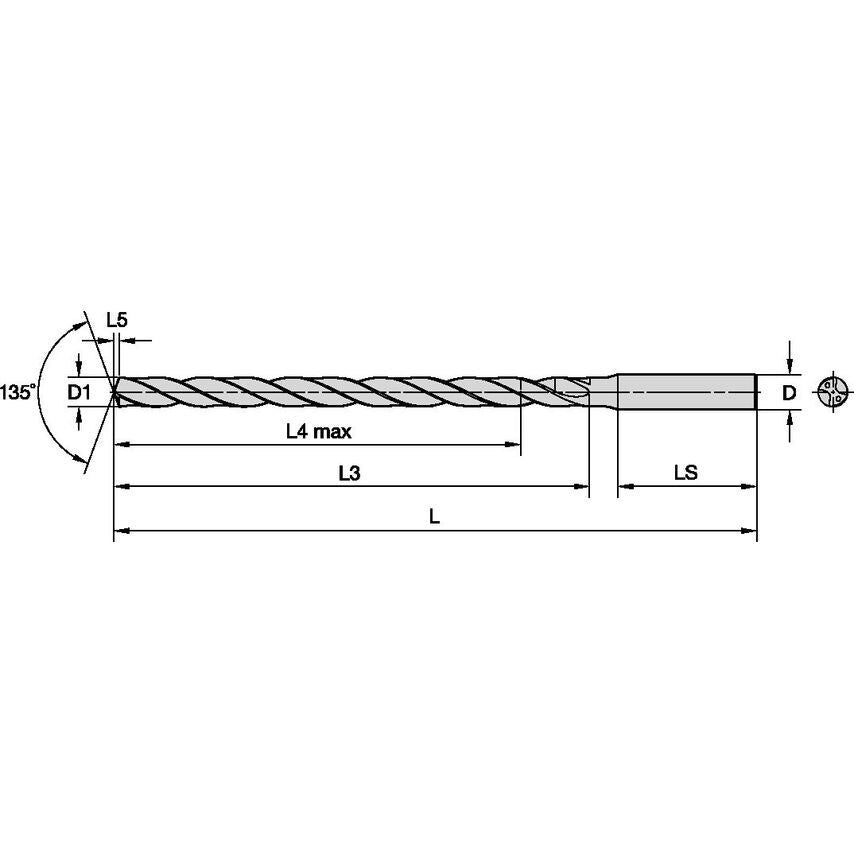

HP Beyond Four-Margin, Long-Length Drills Through Coolant 12 x D
High-Performance Solid Carbide Drills
| Number of Flutes | 2 |
| Helix Type | Right Hand Helix/Flute |
| Drill Depth | 140mm | 140.0000mm |
| MFR Part No. | 4169287 |
| Functional Length | 216.0970mm |
| Flute Construction | Helical Flute |
| Unit Measured | Metric |
| Overall Length | 218mm | 218.0000mm |
| Finish/Coating | TiAlN |
| Drill Point | 1.903mm |
| Drill Diameter Tolerance | 0.007000 to 0.025000mm |
| Coolant Supplied | Yes |
| Flute Length | 164mm | 164.0000mm |
| Material | Carbide |
| Shank Length | 45.0000mm |
| Assembly Length | 171.097mm |
| Clamping Length | 45mm |
| Adapter / Shank / Bore Diameter | 12.0000mm |
| Primary Material | Steel |
| Helix Angle | 27.714 |
| Drill Diameter | 10.2000mm |
| Hand Preference | Right |
| Adapter Type | Cylindrical |
| Adapter Style | Straight-Cylindrical |
