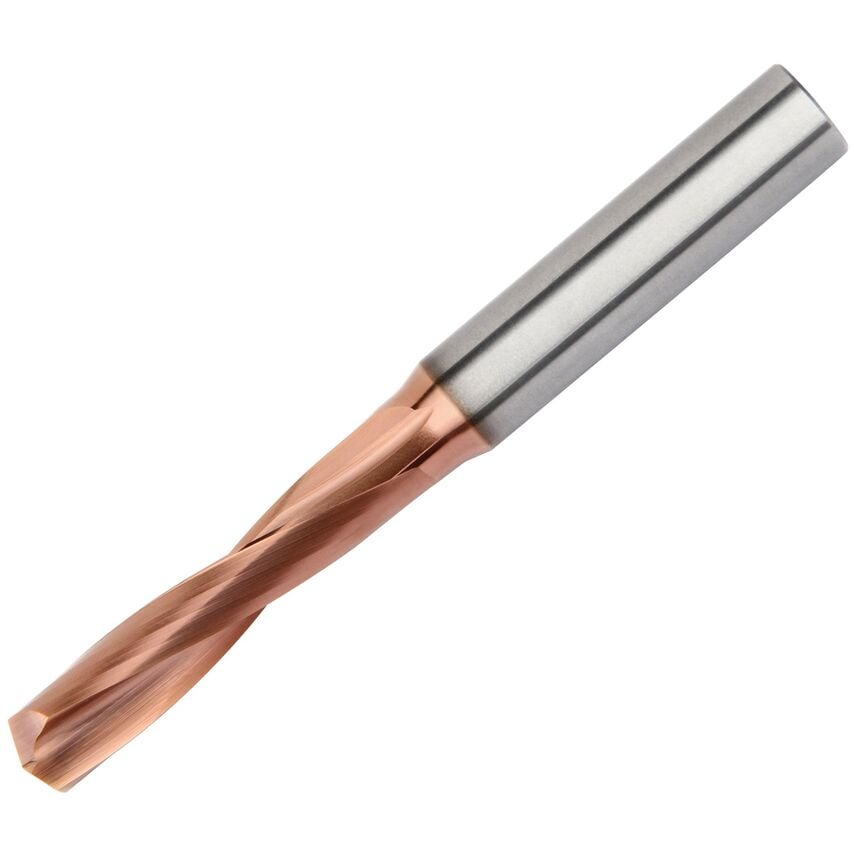

KMH Drills Hard Materials Without CoolantHigh-Performance Solid Carbide Drills
| Adapter Type | Cylindrical |
| Flute Construction | Helical Flute |
| Unit Measured | Metric |
| MFR Part No. | 6358985 |
| Shank Length | 36.0000mm |
| Helix Type | Right Hand Helix/Flute |
| Helix Angle | 15.000 |
| Drill Point | 1.09mm |
| Number of Flutes | 2 |
| Drill Diameter | 6.0000mm |
| Hand Preference | Right |
| Primary Material | Hardened Materials |
| Finish/Coating | AlTiSiN |
| Overall Length | 66mm | 66.0000mm |
| Assembly Length | 37.91mm |
| Drill Depth | 17mm | 17.0000mm |
| Drill Diameter Tolerance | 0.004000 to 0.016000mm |
| Material | Carbide |
| Adapter Style | Straight-Cylindrical |
| Adapter / Shank / Bore Diameter | 6.0000mm |
| Coolant Supplied | No |
| Flute Length | 28mm | 28.0000mm |
| Functional Length | 64.9100mm |
