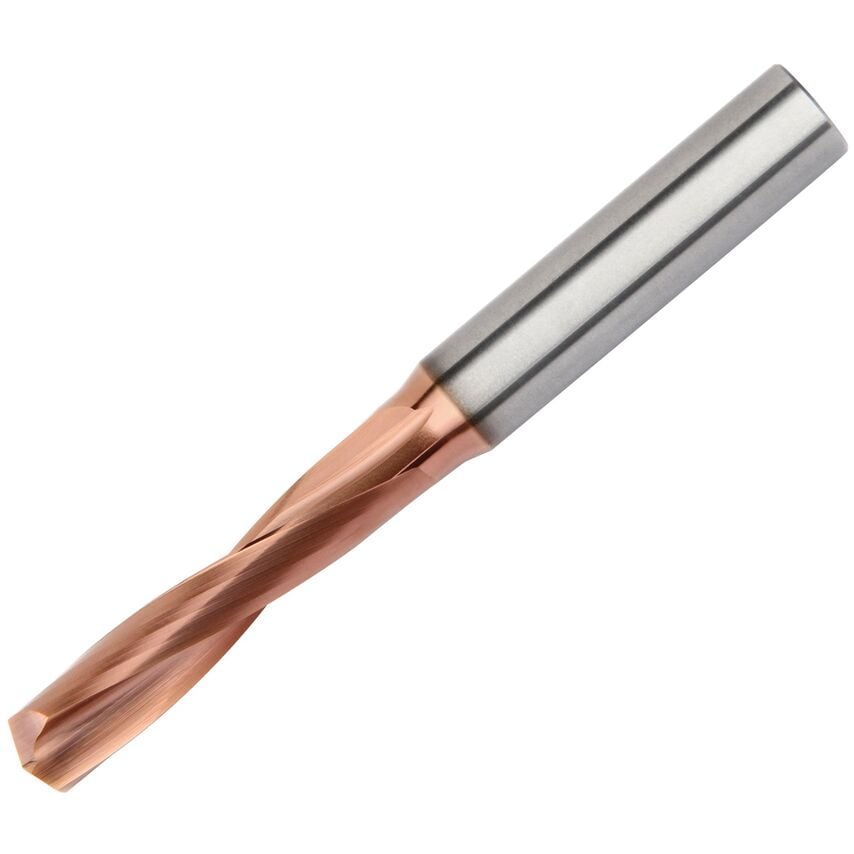

KMH Drills Hard Materials Without CoolantHigh-Performance Solid Carbide Drills

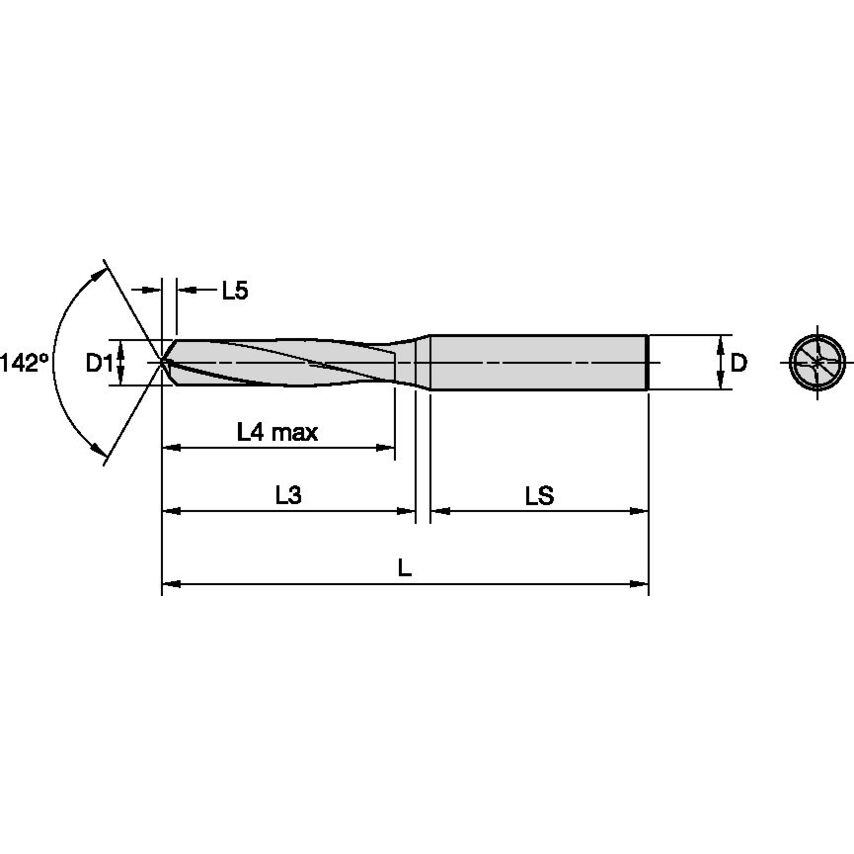

| Number of Flutes | 2 |
| Drill Depth | 19mm | 19.0000mm |
| Adapter / Shank / Bore Diameter | 8.0000mm |
| Drill Diameter Tolerance | 0.006000 to 0.021000mm |
| Overall Length | 79mm | 79.0000mm |
| Adapter Style | Straight-Cylindrical |
| Shank Length | 36.0000mm |
| Assembly Length | 50.75mm |
| Unit Measured | Metric |
| Helix Type | Right Hand Helix/Flute |
| Finish/Coating | AlTiSiN |
| Hand Preference | Right |
| Primary Material | Hardened Materials |
| Coolant Supplied | No |
| Drill Point | 1.25mm |
| Adapter Type | Cylindrical |
| Flute Construction | Helical Flute |
| MFR Part No. | 6358986 |
| Material | Carbide |
| Drill Diameter | 6.9000mm |
| Flute Length | 34mm | 34.0000mm |
| Helix Angle | 15.000 |
| Functional Length | 77.7500mm |
