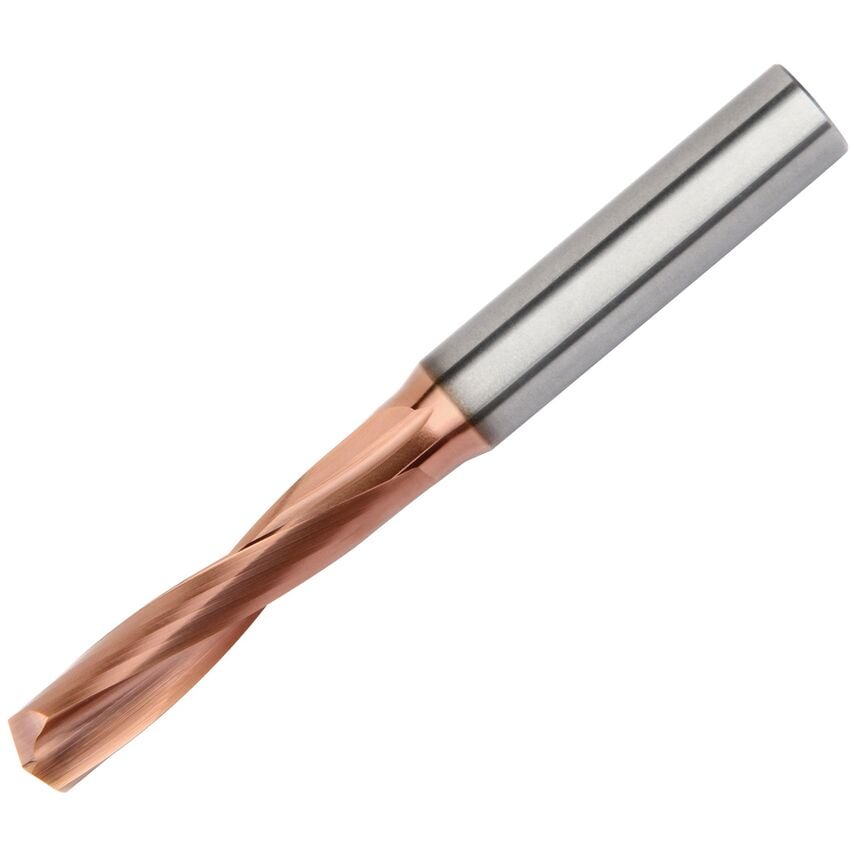

KMH Drills Hard Materials Without CoolantHigh-Performance Solid Carbide Drills

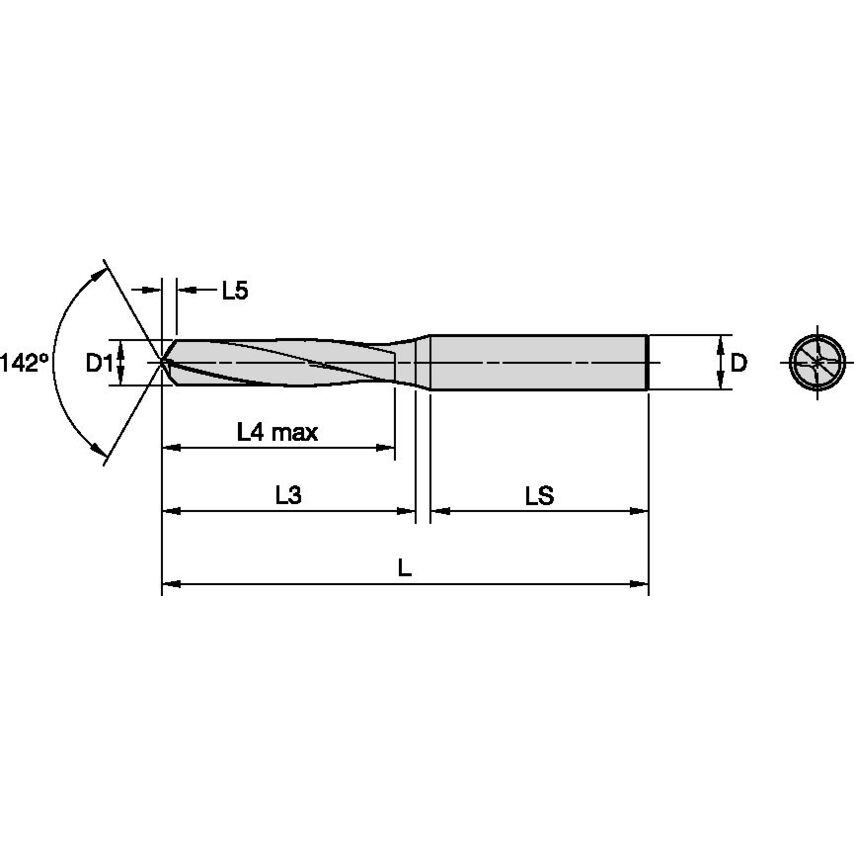

| Material | Carbide |
| Drill Diameter | 8.5000mm |
| Primary Material | Hardened Materials |
| Unit Measured | Metric |
| Drill Depth | 29mm | 29.0000mm |
| Number of Flutes | 2 |
| Adapter Type | Cylindrical |
| Shank Length | 40.0000mm |
| Drill Point | 1.53mm |
| Helix Angle | 15.000 |
| Adapter / Shank / Bore Diameter | 10.0000mm |
| Functional Length | 87.4700mm |
| Flute Length | 47mm | 47.0000mm |
| Flute Construction | Helical Flute |
| Helix Type | Right Hand Helix/Flute |
| Assembly Length | 50.945mm |
| Adapter Style | Straight-Cylindrical |
| Drill Diameter Tolerance | 0.006000 to 0.021000mm |
| Finish/Coating | AlTiSiN |
| Coolant Supplied | No |
| MFR Part No. | 6358990 |
| Overall Length | 89mm | 89.0000mm |
| Hand Preference | Right |
