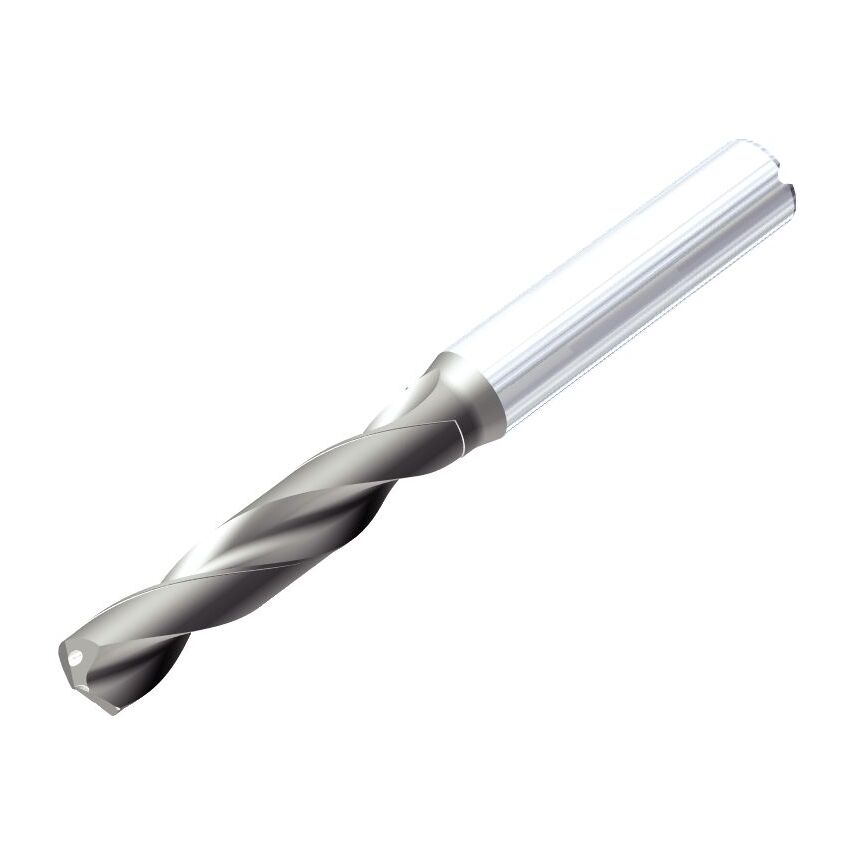

KMH Drills Hard Materials Through CoolantHigh-Performance Solid Carbide Drills

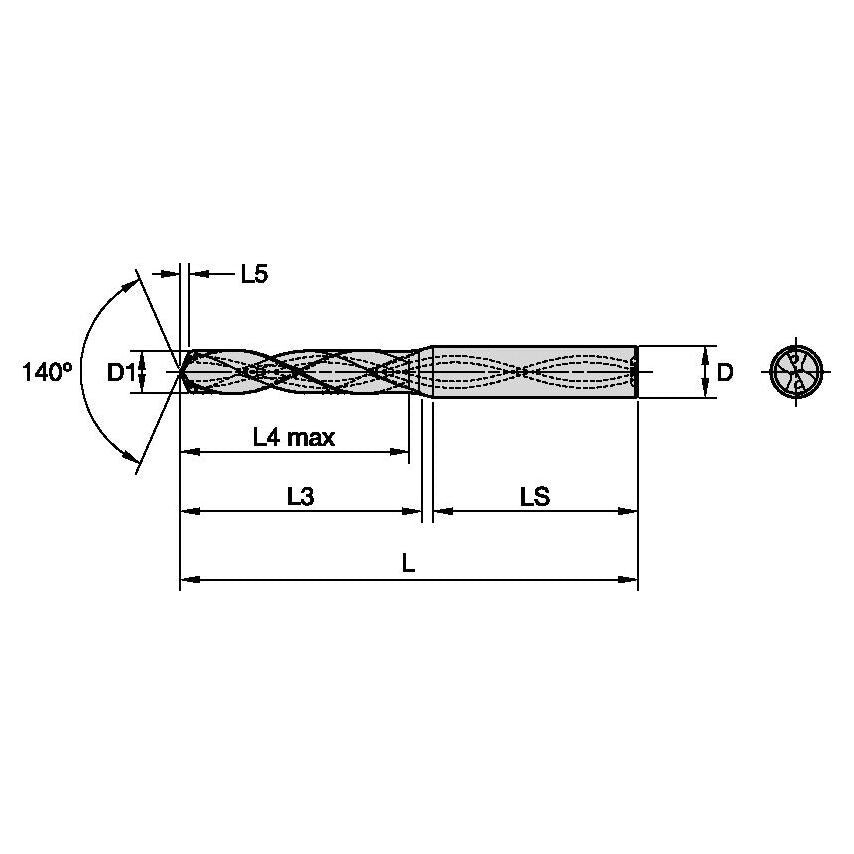

| Assembly Length | 37.9mm |
| Helix Type | Right Hand Helix/Flute |
| Drill Point | 1.1mm |
| Flute Length | 28mm | 28.0000mm |
| Shank Length | 36.0000mm |
| Material | Carbide |
| Coolant Diameter | 0.9900mm (0.0567in) |
| Adapter Type | Cylindrical |
| Drill Depth | 20mm | 20.0000mm |
| Drill Diameter | 5.5000mm |
| Finish/Coating | AlTiN |
| Unit Measured | Metric |
| Adapter Style | Straight-Cylindrical |
| MFR Part No. | 6359023 |
| Functional Length | 64.9000mm |
| Number of Flutes | 2 |
| Adapter / Shank / Bore Diameter | 6.0000mm |
| Hand Preference | Right |
| Coolant Supplied | Yes |
| Drill Diameter Tolerance | 0.004000 to 0.016000mm |
| Flute Construction | Helical Flute |
| Helix Angle | 27.925 |
| Overall Length | 66mm | 66.0000mm |
| Primary Material | Hardened Materials |
