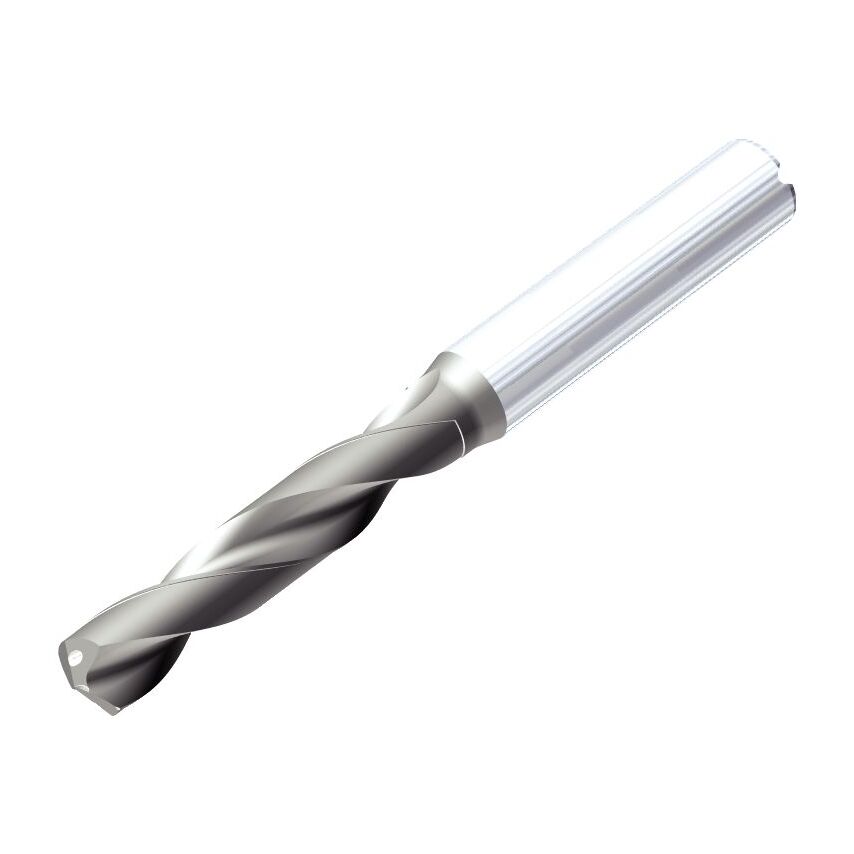

KMH Drills Hard Materials Through CoolantHigh-Performance Solid Carbide Drills
| Unit Measured | Metric |
| Functional Length | 77.6000mm |
| Adapter Type | Cylindrical |
| Flute Construction | Helical Flute |
| Material | Carbide |
| Shank Length | 36.0000mm |
| Number of Flutes | 2 |
| Assembly Length | 50.6mm |
| Hand Preference | Right |
| Coolant Diameter | 1.1200mm (0.0787in) |
| Finish/Coating | AlTiN |
| Drill Depth | 24mm | 24.0000mm |
| Helix Type | Right Hand Helix/Flute |
| Drill Diameter Tolerance | 0.006000 to 0.021000mm |
| Overall Length | 79mm | 79.0000mm |
| Flute Length | 34mm | 34.0000mm |
| Primary Material | Hardened Materials |
| Drill Diameter | 7.0000mm |
| MFR Part No. | 6359029 |
| Coolant Supplied | Yes |
| Adapter / Shank / Bore Diameter | 8.0000mm |
| Helix Angle | 28.801 |
| Drill Point | 1.4mm |
| Adapter Style | Straight-Cylindrical |
