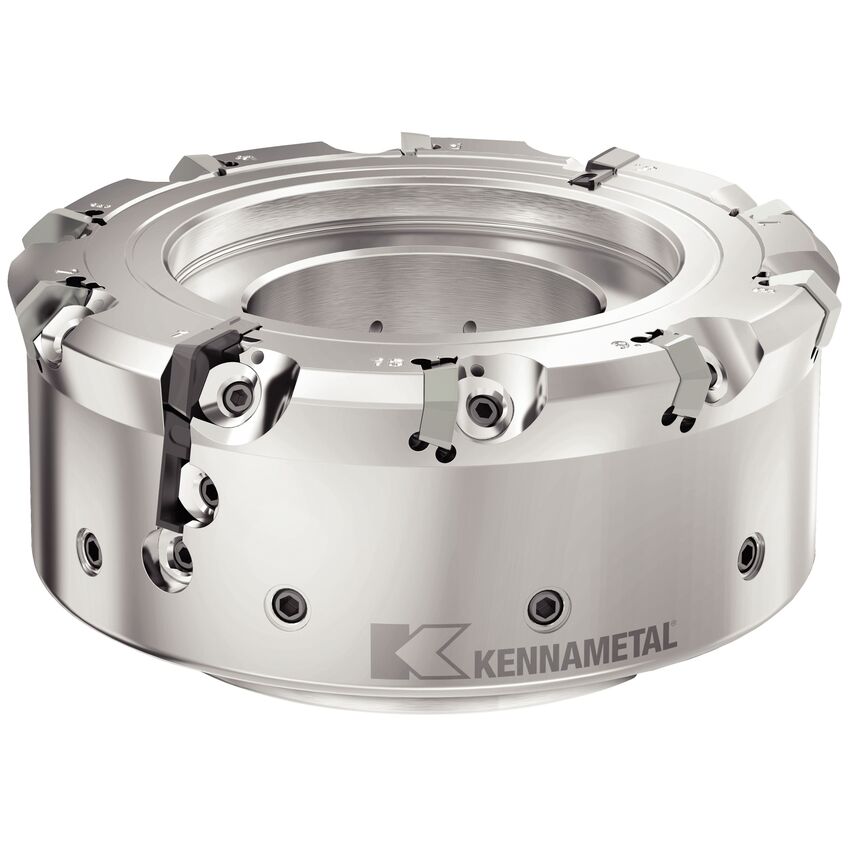

KCFM 45 Shell Mill Cutter Fine FinishingFace Milling
| Adapter Type Machine Side | Shell Mill |
| Max. Depth of Cut | 1.0900mm |
| Coolant Supplied | Yes |
| Maximum Cutting Diameter | 109.53mm |
| Hand Preference | Right |
| Number of Flutes | 8 |
| Body Material | Steel |
| Milling Application | Face Mill |
| Insert Shape | H-Hexagon 120 |
| Clamp Type | Wedge Clamp Before Insert |
| Body Diameter Max | 107mm |
| Number of Inserts | 8 |
| MFR Part No. | 6224239 |
| Unit Measured | Metric |
| Hub Diameter | 101.4mm | 101.4000mm |
| Center Cutting Tool | No Center Cutting |
