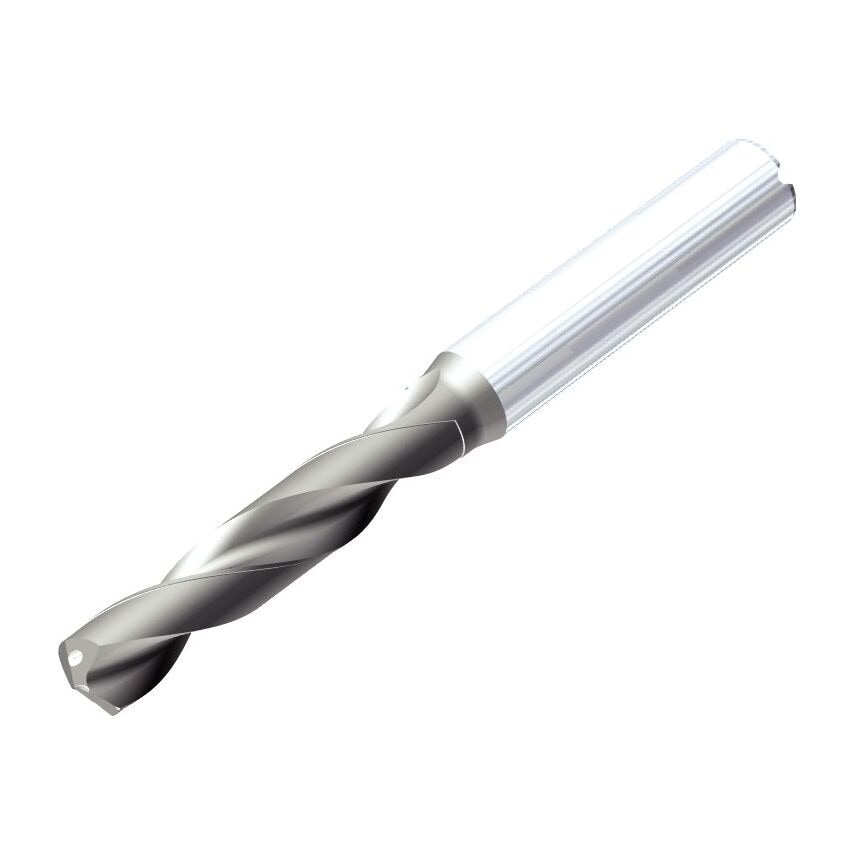

KMH Drills Hard Materials Through CoolantHigh-Performance Solid Carbide Drills
| Helix Type | Right Hand Helix/Flute |
| Primary Material | Hardened Materials |
| Shank Length | 48.0000mm |
| Helix Angle | 29.402 |
| Flute Length | 65mm | 65.0000mm |
| Adapter / Shank / Bore Diameter | 16.0000mm |
| Overall Length | 115mm | 115.0000mm |
| Material | Carbide |
| Functional Length | 111.8500mm |
| Drill Point | 3.15mm |
| Drill Diameter Tolerance | 0.007000 to 0.025000mm |
| Flute Construction | Helical Flute |
| Assembly Length | 69.85mm |
| Drill Diameter | 16.0000mm |
| Coolant Diameter | 2.2400mm (0.0441in) |
| Coolant Supplied | Yes |
| Drill Depth | 45mm | 45.0000mm |
| Unit Measured | Metric |
| MFR Part No. | 6359051 |
| Adapter Style | Straight-Cylindrical |
| Finish/Coating | AlTiN |
| Adapter Type | Cylindrical |
| Hand Preference | Right |
| Number of Flutes | 2 |
