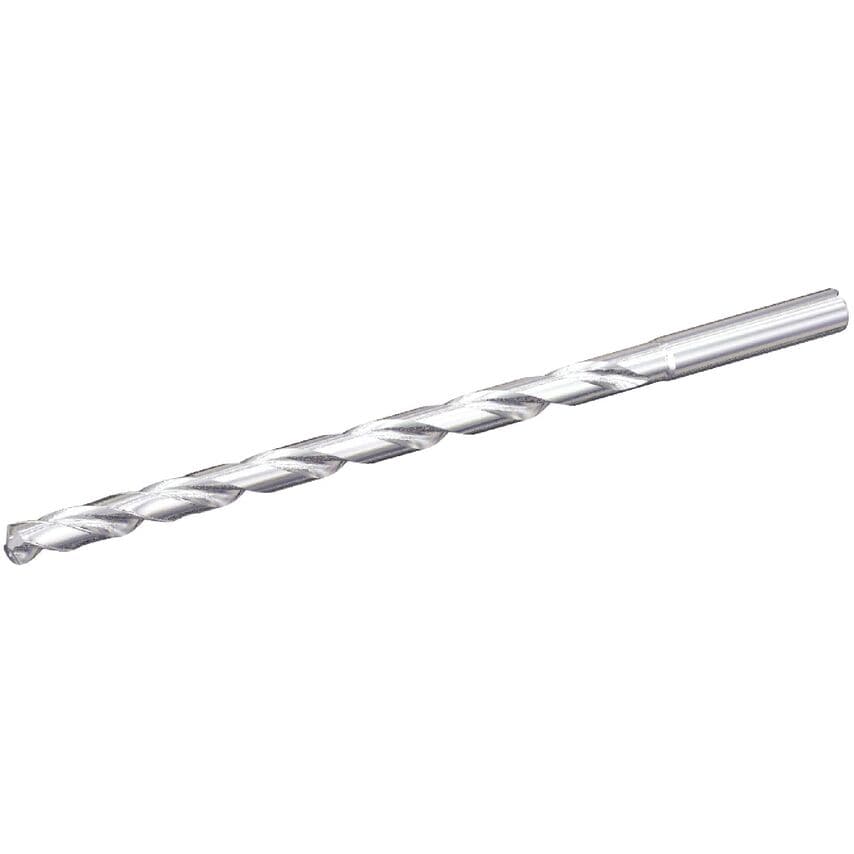

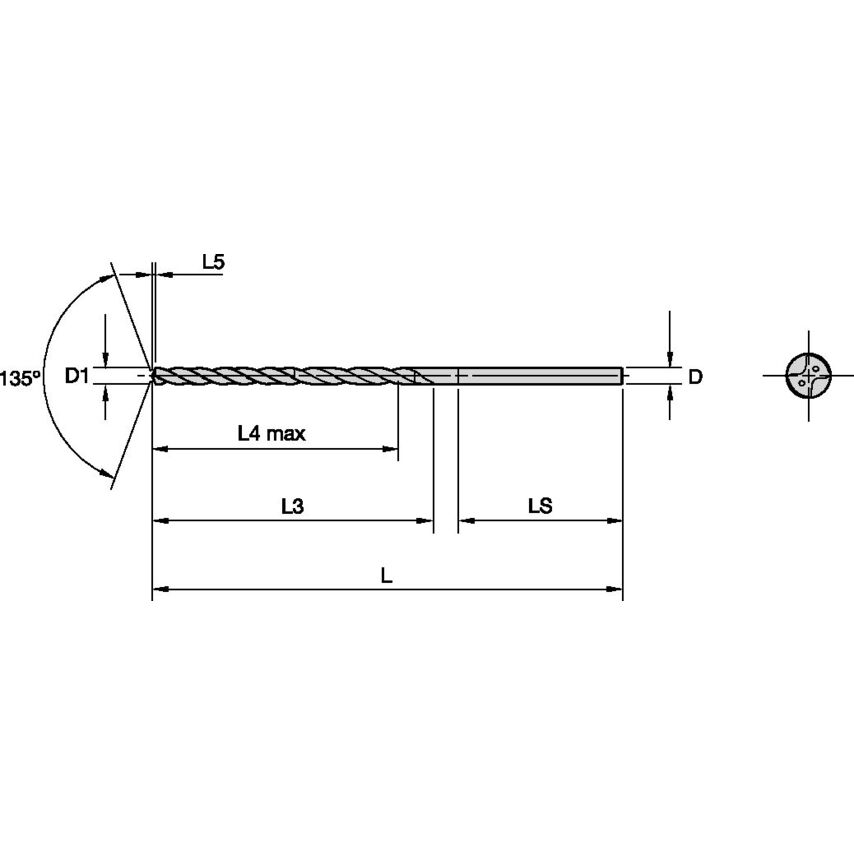

Beyond SC Deep-Hole Drills Multiple Materials Through CoolantHigh-Performance Solid Carbide Drills
| MFR Part No. | 6351174 |
| Assembly Length | 90.82mm |
| Helix Angle | 29.995 |
| Adapter Style | Straight-Cylindrical |
| Unit Measured | Metric |
| Helix Type | Right Hand Helix/Flute |
| Drill Depth | 60mm | 60.0000mm |
| Primary Material | Steel |
| Coolant Diameter | 0.4200mm (0.0504in) |
| Shank Length | 32.0000mm |
| Material | Carbide |
| Drill Diameter Tolerance | -0.012000 to 0.000000mm |
| Drill Diameter | 4.0000mm |
| Coolant Supplied | Yes |
| Number of Flutes | 2 |
| Flute Construction | Helical Flute |
| Adapter / Shank / Bore Diameter | 4.0000mm |
| Drill Point | 0.68mm |
| Overall Length | 105mm | 105.0000mm |
| Functional Length | 104.3200mm |
| Adapter Type | Cylindrical |
| Finish/Coating | Uncoated |
| Hand Preference | Right |
| Flute Length | 70mm | 70.0000mm |
