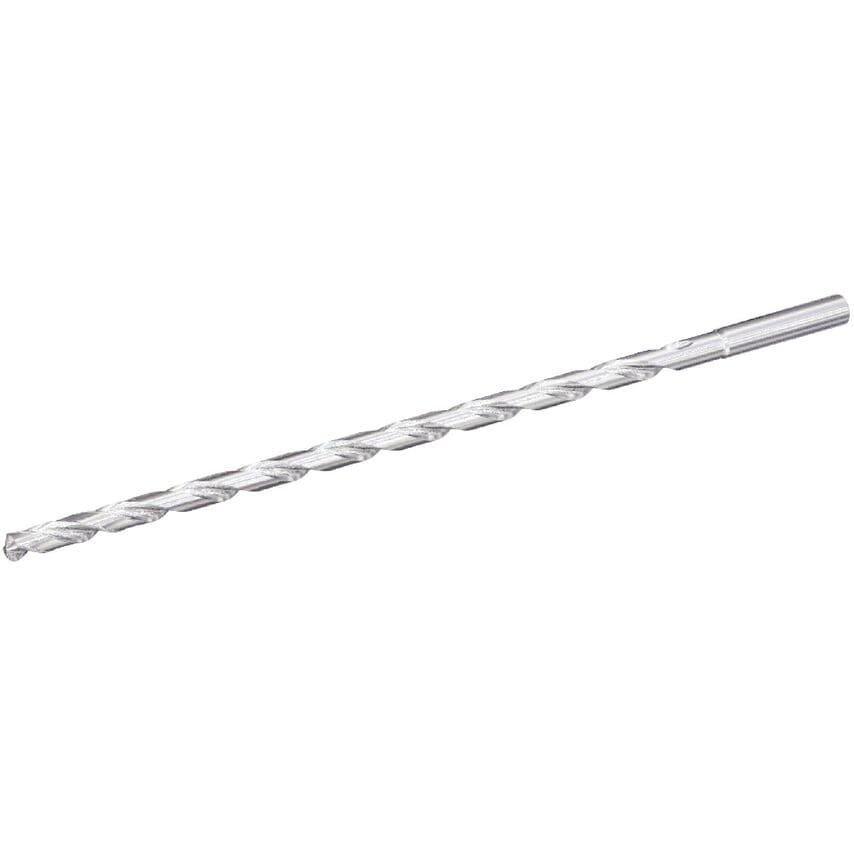

Beyond SC Deep-Hole Drills Multiple Materials Through CoolantHigh-Performance Solid Carbide Drills

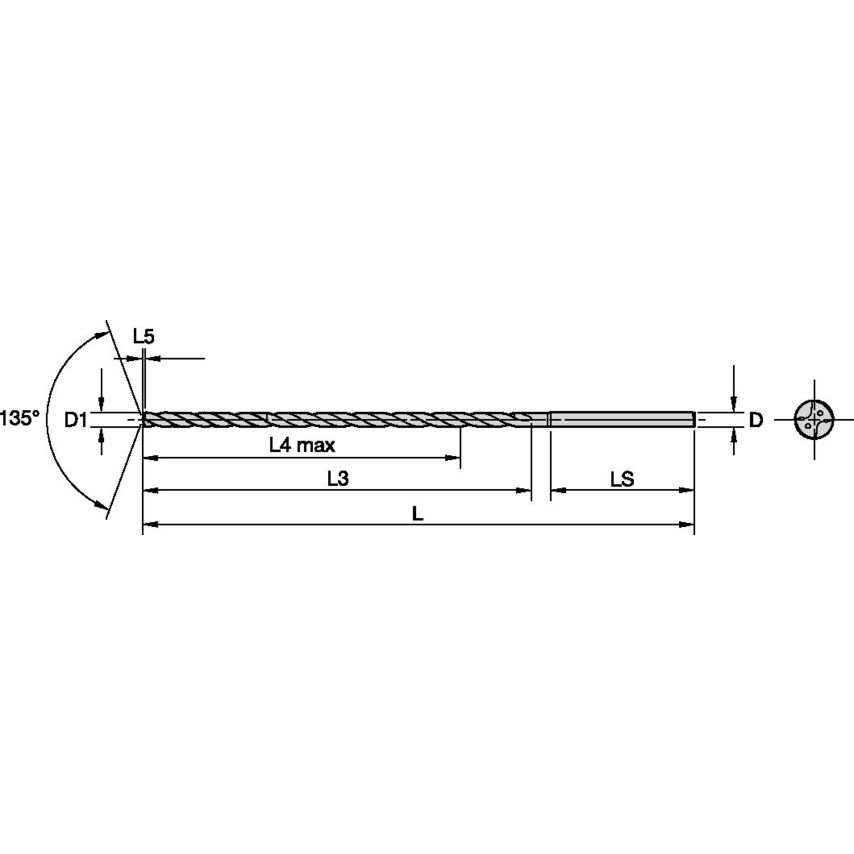

| Overall Length | 493mm | 493.0000mm |
| Drill Point | 2.72mm |
| Flute Construction | Helical Flute |
| Helix Angle | 29.402 |
| Drill Diameter | 16.0000mm |
| Coolant Supplied | Yes |
| Drill Diameter Tolerance | -0.018000 to 0.000000mm |
| Functional Length | 490.2800mm |
| Coolant Diameter | 2.2400mm (0.0472in) |
| Assembly Length | 448.28mm |
| Adapter Style | Straight-Cylindrical |
| Hand Preference | Right |
| Unit Measured | Metric |
| Primary Material | Steel |
| Adapter / Shank / Bore Diameter | 16.0000mm |
| Adapter Type | Cylindrical |
| Finish/Coating | Uncoated |
| Material | Carbide |
| Number of Flutes | 2 |
| Drill Depth | 400mm | 400.0000mm |
| Helix Type | Right Hand Helix/Flute |
| MFR Part No. | 6351252 |
| Flute Length | 434mm | 434.0000mm |
| Shank Length | 56.0000mm |
