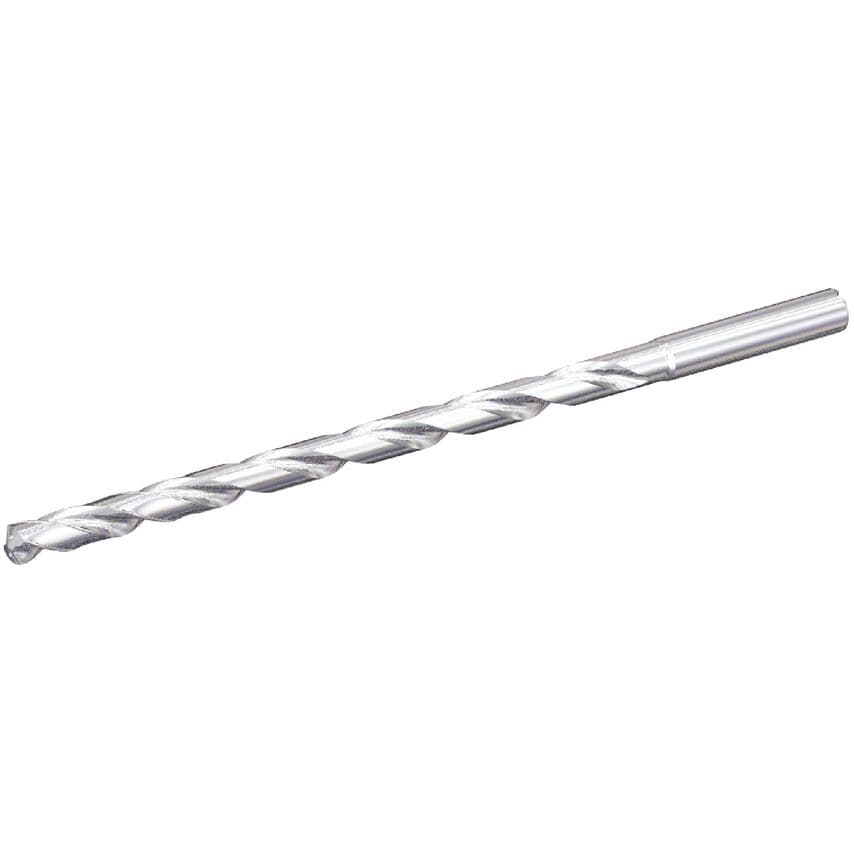

Beyond SC Deep-Hole Drills Multiple Materials Through CoolantHigh-Performance Solid Carbide Drills
| Drill Diameter Tolerance | -0.018000 to 0.000000mm |
| Helix Angle | 29.324 |
| Assembly Length | 250.62mm |
| Number of Flutes | 2 |
| Coolant Supplied | Yes |
| Flute Construction | Helical Flute |
| Drill Depth | 210mm | 210.0000mm |
| Coolant Diameter | 2.0000mm (0.0882in) |
| Shank Length | 52.0000mm |
| Finish/Coating | Uncoated |
| Primary Material | Steel |
| MFR Part No. | 6351266 |
| Unit Measured | Metric |
| Functional Length | 292.6200mm |
| Drill Point | 2.38mm |
| Overall Length | 295mm | 295.0000mm |
| Adapter Style | Straight-Cylindrical |
| Material | Carbide |
| Flute Length | 240mm | 240.0000mm |
| Helix Type | Right Hand Helix/Flute |
| Drill Diameter | 14.0000mm |
| Hand Preference | Right |
| Adapter Type | Cylindrical |
| Adapter / Shank / Bore Diameter | 14.0000mm |
