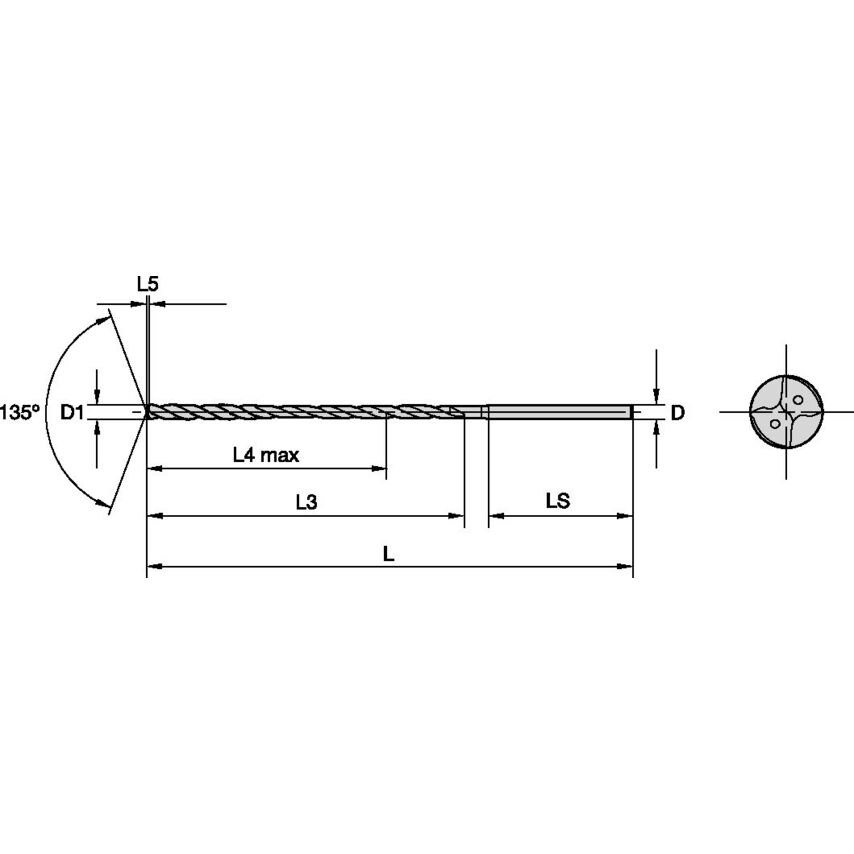

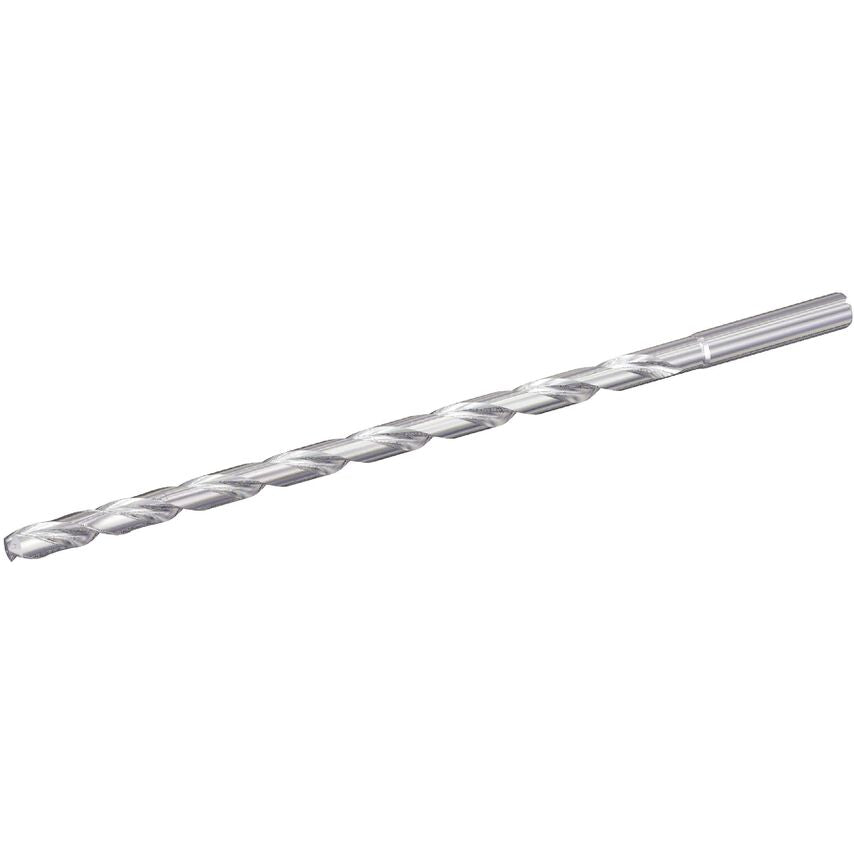

Beyond SC Deep-Hole Drills Multiple Materials Through CoolantHigh-Performance Solid Carbide Drills
| Functional Length | 195.9200mm |
| Drill Diameter | 6.3500mm |
| Shank Length | 38.0000mm |
| Adapter Style | Straight-Cylindrical |
| Drill Depth | 136mm | 136.0000mm |
| Hand Preference | Right |
| Helix Angle | 27.643 |
| Flute Length | 151mm | 151.0000mm |
| Overall Length | 197mm | 197.0000mm |
| Material | Carbide |
| Adapter / Shank / Bore Diameter | 7.0000mm |
| Drill Diameter Tolerance | -0.015000 to 0.000000mm |
| MFR Part No. | 6351330 |
| Flute Construction | Helical Flute |
| Unit Measured | Metric |
| Number of Flutes | 2 |
| Primary Material | Steel |
| Assembly Length | 168.92mm |
| Drill Point | 1.08mm |
| Helix Type | Right Hand Helix/Flute |
| Coolant Diameter | 0.8500mm (0.0390in) |
| Finish/Coating | Uncoated |
| Coolant Supplied | Yes |
| Adapter Type | Cylindrical |
