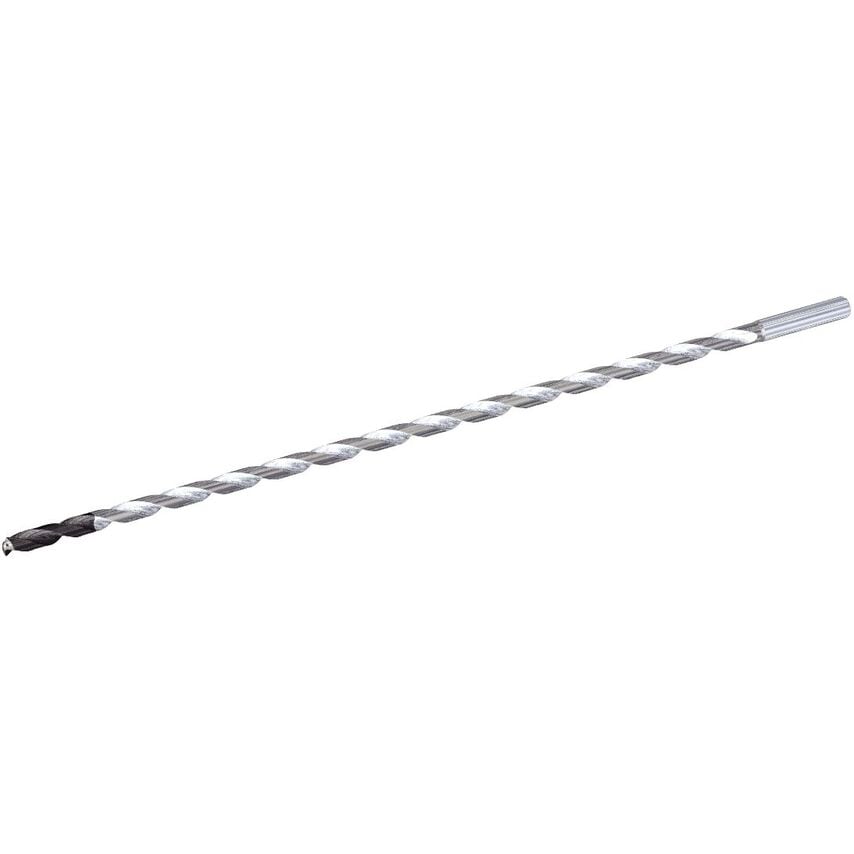

Beyond SC Deep-Hole Drills Multiple Materials Through CoolantHigh-Performance Solid Carbide Drills
| Number of Flutes | 2 |
| MFR Part No. | 6351400 |
| Functional Length | 248.1900mm |
| Drill Point | 0.81mm |
| Coolant Diameter | 0.4900mm (0.0445in) |
| Material | Carbide |
| Helix Type | Right Hand Helix/Flute |
| Hand Preference | Right |
| Helix Angle | 28.807 |
| Drill Diameter | 4.7630mm |
| Coolant Supplied | Yes |
| Drill Depth | 194mm | 194.0000mm |
| Flute Construction | Helical Flute |
| Flute Length | 205mm | 205.0000mm |
| Overall Length | 249mm | 249.0000mm |
| Shank Length | 34.0000mm |
| Drill Diameter Tolerance | -0.012000 to 0.000000mm |
| Adapter Style | Straight-Cylindrical |
| Assembly Length | 234.69mm |
| Finish/Coating | Uncoated |
| Adapter Type | Cylindrical |
| Unit Measured | Metric |
| Primary Material | Steel |
| Adapter / Shank / Bore Diameter | 5.0000mm |
