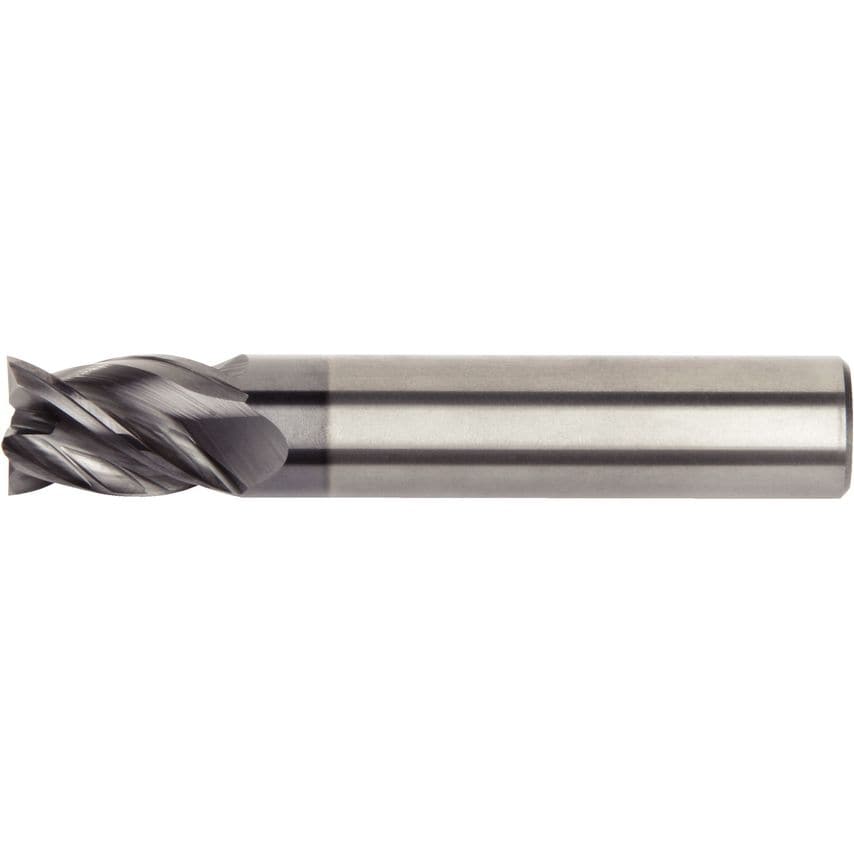

Versatile solid carbide end mill for steels, stainless steel, cast iron, and high temperature alloys.HARVI I TE solid carbide end mills cover a variety of operations, including dynamic milling, and extreme ramping operations.HARVI I TE solid carbide end mills stand for maximum metal removal, maximum productivity, maximum benefit.HARVI I TE solid carbide end mills feature asymmetrical divided flutes, variable helix, twisted end face, faceted eccentric relief, and chip gashes within the flutes.Centre cutting for plunging and ramping operations.
| Unit Measured | Metric |

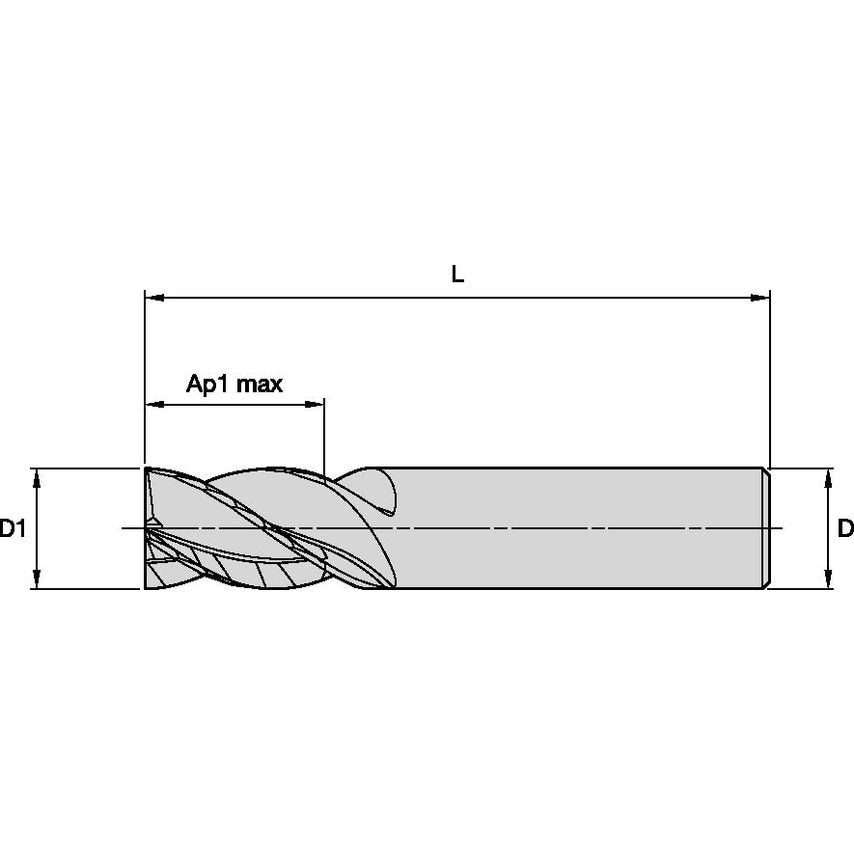

| Max. Depth of Cut | 4.0000mm |
| Hand Preference | Right |
| Helix Angle | 36.000 |
| Coolant Supplied | No |
| Adapter / Shank / Bore Diameter | 6mm |
| Number of Flutes | 4 |
| Number of End Mills | Single Ended |
| Body Material | Carbide |
| Finish/Coating | AlTiN |
| MFR Part No. | 6769558 |
| Style | Square End |
| Milling Application | End Mills |
| Adapter Type Machine Side | Cylindrical |
