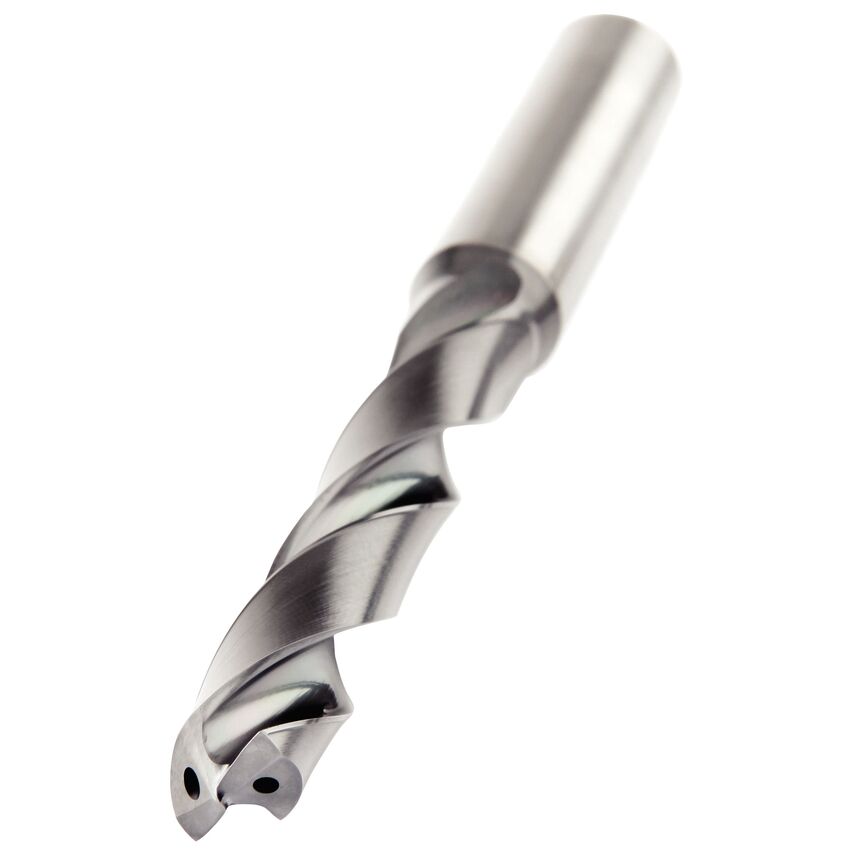

HPX B225 5 x D Through CoolantHigh-Performance Solid Carbide Drills
| Material | Carbide |
| Finish/Coating | TiN/AlTiN |
| Number of Flutes | 2 |
| MFR Part No. | 6781776 |
| Adapter Type | Cylindrical |
| Adapter Style | Straight-Cylindrical |
| Coolant Diameter | 0.7000mm (0.0276in) |
| Drill Point | 0.98mm |
| Helix Angle | 31.365 |
| Adapter / Shank / Bore Diameter | 6.0000mm |
| Helix Type | Right Hand Helix/Flute |
| Shank Length | 36.0000mm |
| Primary Material | Steel |
| Drill Diameter | 4.3656mm |
| Hand Preference | Right |
| Drill Diameter Tolerance | 0.004000 to 0.016000mm |
| Overall Length | 74mm | 74.0000mm |
| Functional Length | 73.0200mm |
| Drill Depth | 29mm | 29.0000mm |
| Flute Length | 36mm | 36.0000mm |
| Flute Construction | Helical Flute |
| Unit Measured | Metric |
| Coolant Supplied | Yes |
| Assembly Length | 46.02mm |
