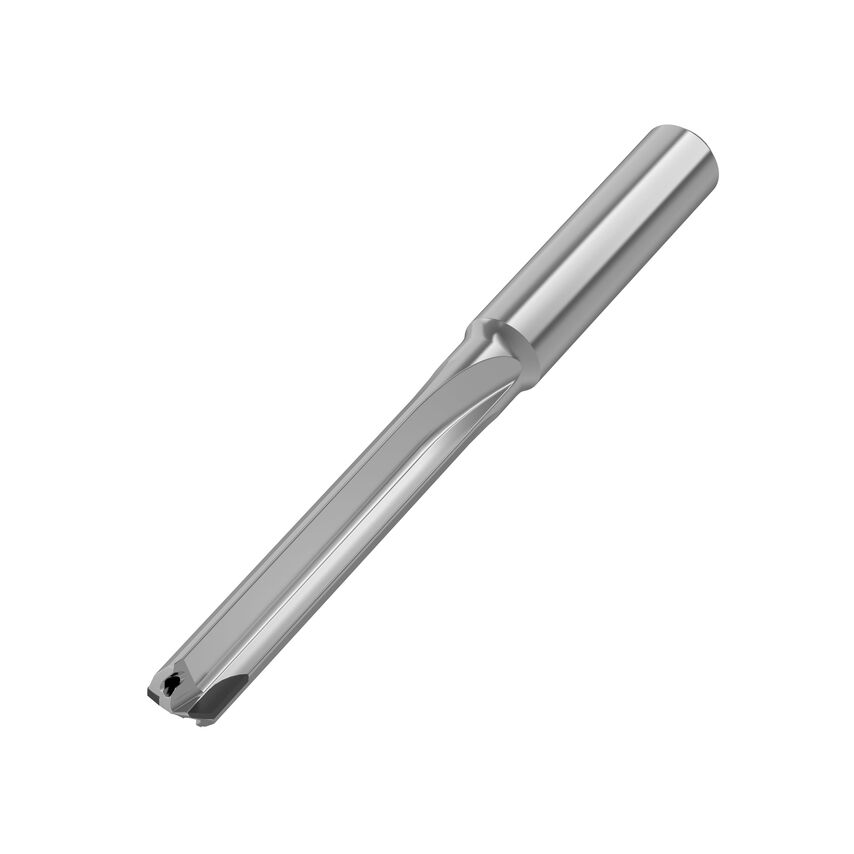

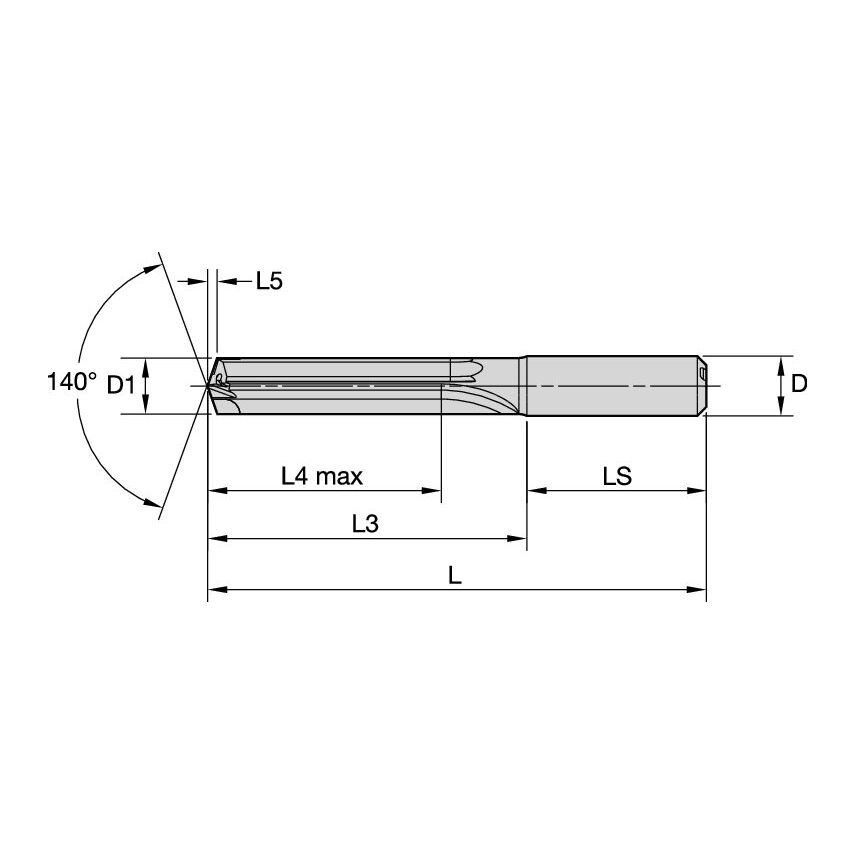

PCD Drill B467 5 x D Internal CoolantSolid Carbide Drills
| Unit Measured | Metric |
| Finish/Coating | Uncoated |
| Adapter Type | Cylindrical |
| Shank Length | 36.0000mm |
| Coolant Supplied | Yes |
| Adapter Style | Straight-Cylindrical |
| Functional Length | 89.7200mm |
| Drill Point | 1.28mm |
| Drill Diameter | 7.5000mm |
| Adapter / Shank / Bore Diameter | 8.0000mm |
| MFR Part No. | 6761171 |
| Assembly Length | 62.72mm |
| Overall Length | 91mm | 91.0000mm |
| Flute Length | 53mm | 53.0000mm |
| Flute Construction | Straight Flute |
| Material | Carbide |
| Drill Diameter Tolerance | 0.001000 to 0.010000mm |
| Drill Depth | 43mm | 43.0000mm |
| Primary Material | Non-Ferrous Materials |
| Hand Preference | Right |
| Helix Type | Right Hand Helix/Flute |
| Number of Flutes | 2 |
