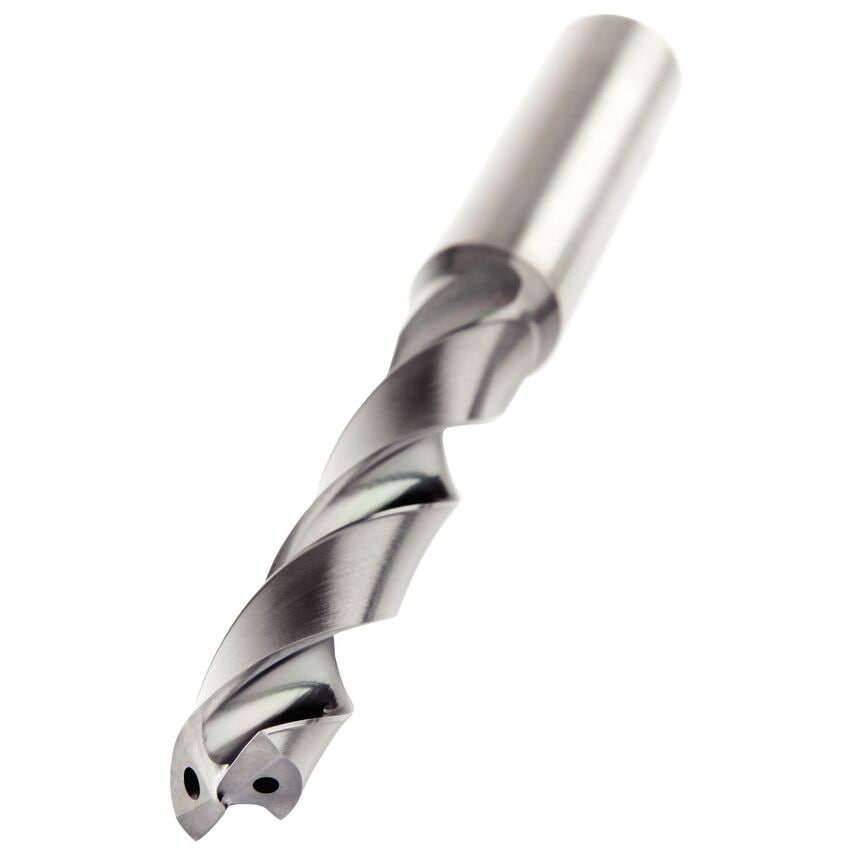

HPX B225 5 x D Through CoolantHigh-Performance Solid Carbide Drills
| Drill Depth | 49mm | 49.0000mm |
| Shank Length | 40.0000mm |
| Flute Length | 61mm | 61.0000mm |
| Drill Diameter | 9.5250mm |
| Coolant Diameter | 1.4400mm (0.0504in) |
| Helix Type | Right Hand Helix/Flute |
| Adapter Style | Straight-Cylindrical |
| Overall Length | 103mm | 103.0000mm |
| Hand Preference | Right |
| Drill Point | 2.03mm |
| MFR Part No. | 6781886 |
| Helix Angle | 28.993 |
| Assembly Length | 64.445mm |
| Drill Diameter Tolerance | 0.006000 to 0.021000mm |
| Flute Construction | Helical Flute |
| Adapter Type | Cylindrical |
| Finish/Coating | TiN/AlTiN |
| Adapter / Shank / Bore Diameter | 10.0000mm |
| Primary Material | Steel |
| Material | Carbide |
| Coolant Supplied | Yes |
| Functional Length | 100.9700mm |
| Unit Measured | Metric |
| Number of Flutes | 2 |
