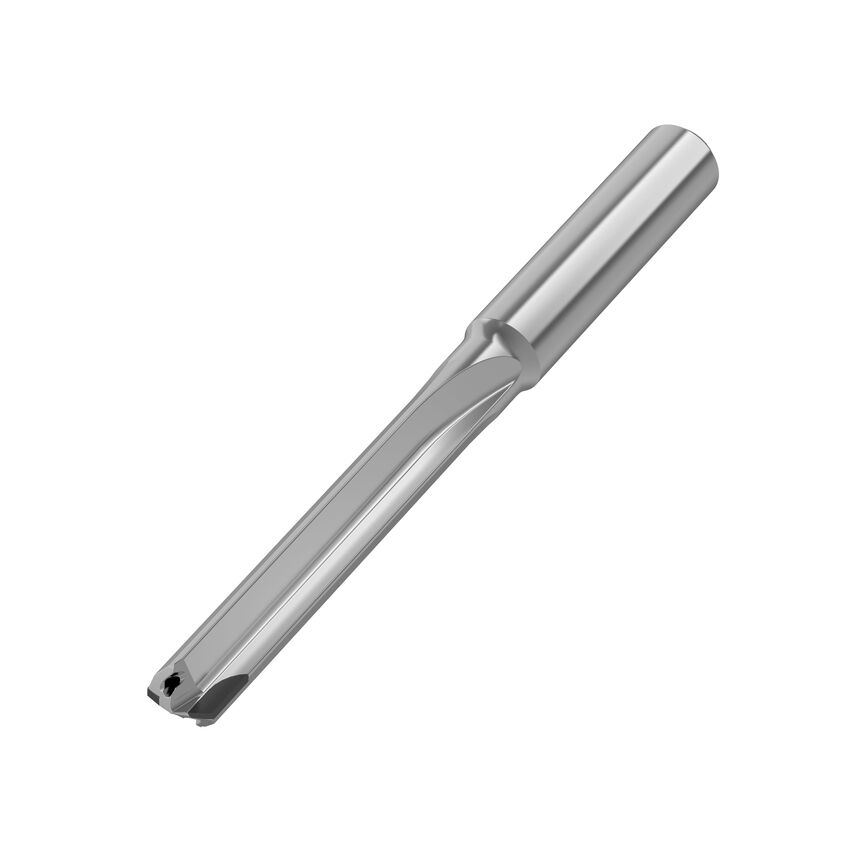

PCD Drill B467 5 x D Internal CoolantSolid Carbide Drills
| Flute Construction | Straight Flute |
| Overall Length | 143mm | 143.0000mm |
| Material | Carbide |
| Shank Length | 48.0000mm |
| Primary Material | Non-Ferrous Materials |
| Adapter / Shank / Bore Diameter | 20.0000mm |
| Coolant Supplied | Yes |
| Unit Measured | Metric |
| Drill Diameter | 18.0000mm |
| Drill Point | 3.04mm |
| Drill Depth | 71mm | 71.0000mm |
| Functional Length | 139.9600mm |
| Assembly Length | 89.96mm |
| Flute Length | 93mm | 93.0000mm |
| MFR Part No. | 6761192 |
| Number of Flutes | 2 |
| Adapter Style | Straight-Cylindrical |
| Hand Preference | Right |
| Drill Diameter Tolerance | 0.001000 to 0.009000mm |
| Finish/Coating | Uncoated |
| Adapter Type | Cylindrical |
| Helix Type | Right Hand Helix/Flute |
