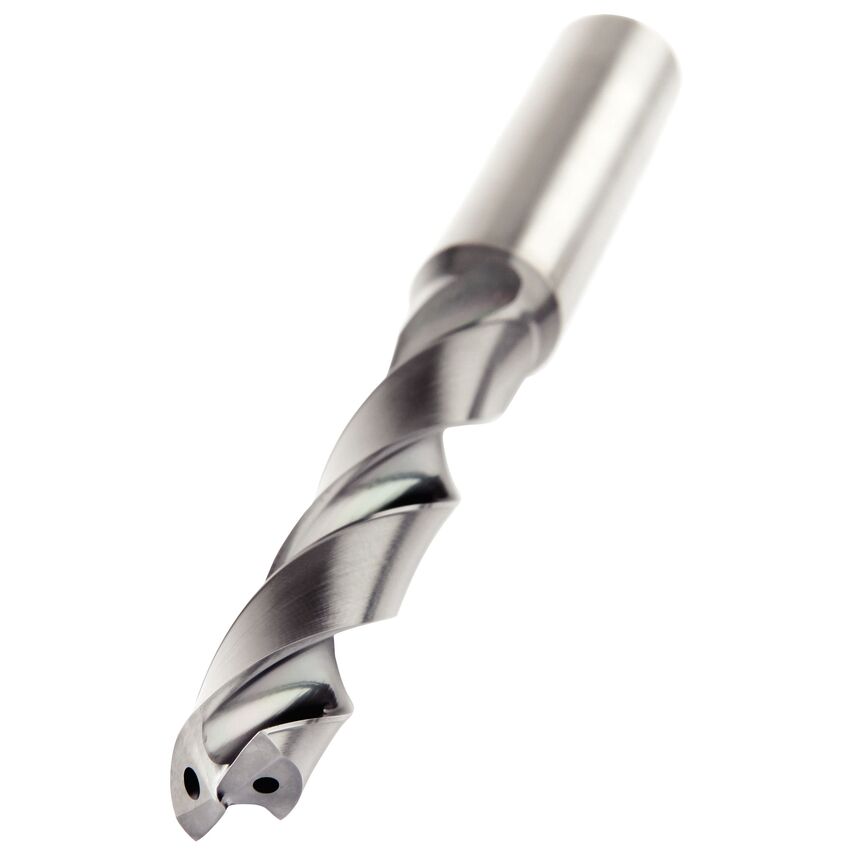

HPX B225 5 x D Through CoolantHigh-Performance Solid Carbide Drills
| Helix Angle | 29.488 |
| Flute Length | 71mm | 71.0000mm |
| Overall Length | 118mm | 118.0000mm |
| Drill Diameter | 11.7000mm |
| Unit Measured | Metric |
| Assembly Length | 73.54mm |
| Helix Type | Right Hand Helix/Flute |
| Adapter Type | Cylindrical |
| Adapter Style | Straight-Cylindrical |
| Drill Point | 2.46mm |
| Functional Length | 115.5400mm |
| Number of Flutes | 2 |
| Drill Depth | 56mm | 56.0000mm |
| Drill Diameter Tolerance | 0.007000 to 0.025000mm |
| Primary Material | Steel |
| Shank Length | 45.0000mm |
| Flute Construction | Helical Flute |
| MFR Part No. | 6782234 |
| Coolant Supplied | Yes |
| Adapter / Shank / Bore Diameter | 12.0000mm |
| Material | Carbide |
| Coolant Diameter | 1.7600mm (0.0567in) |
| Finish/Coating | TiN/AlTiN |
| Hand Preference | Right |
