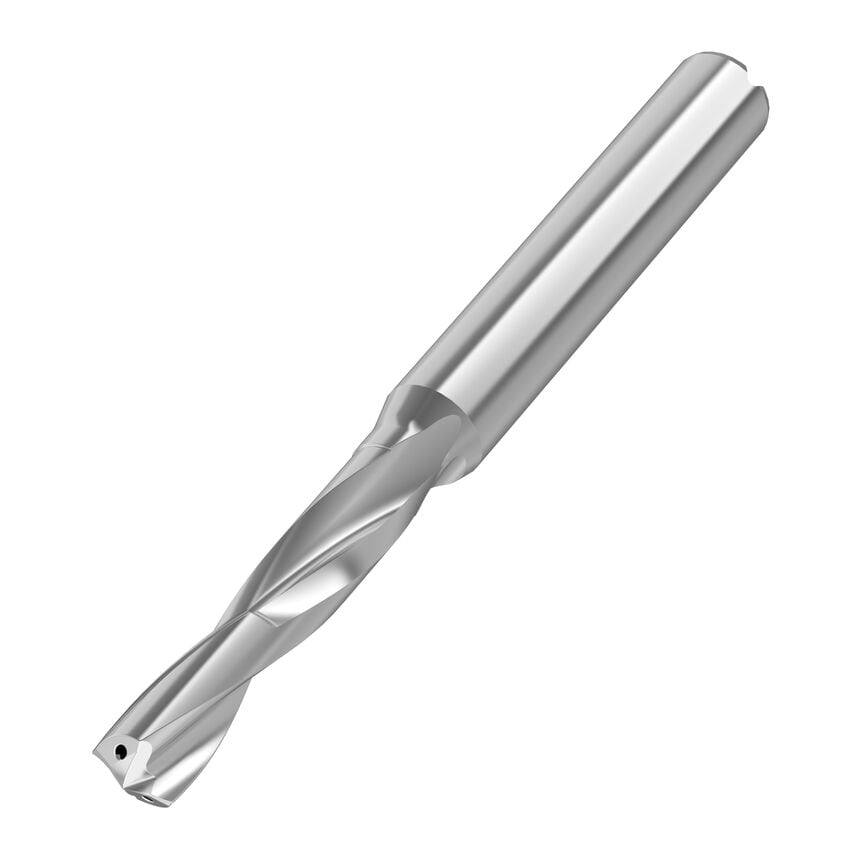

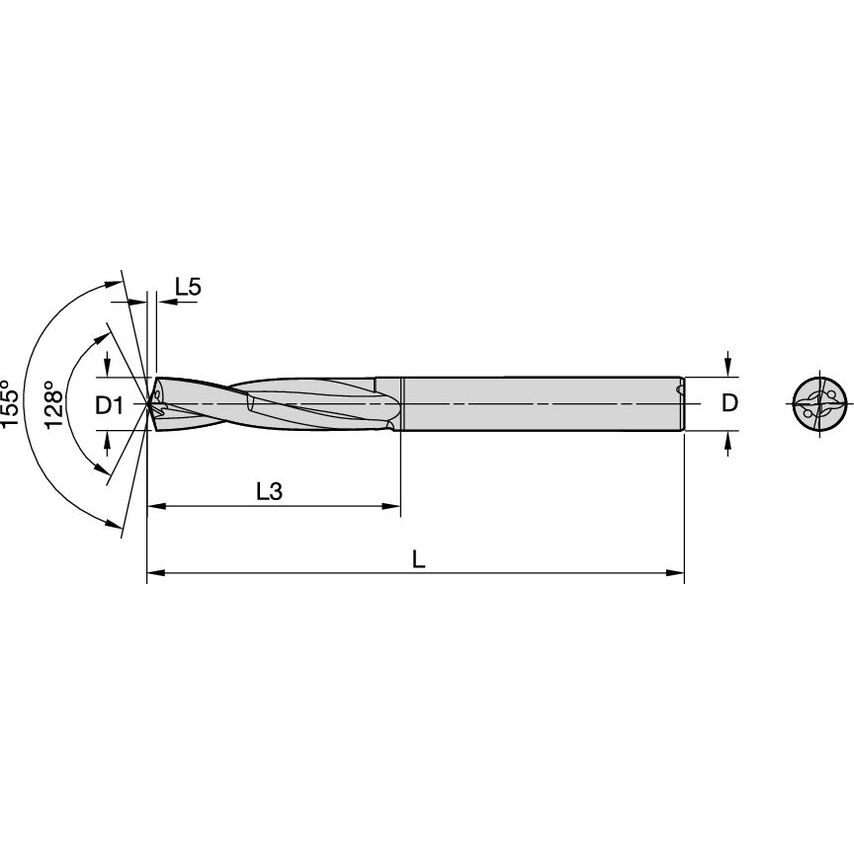

DAL B566 3 x D Internal CoolantFastener Drills
| Primary Material | CFRP Materials |
| Functional Length | 78.9000mm |
| Shank Length | 42.0000mm |
| Unit Measured | Metric |
| Flute Length | 37mm | 37.0000mm |
| Finish/Coating | Uncoated |
| Adapter Type | Cylindrical |
| Number of Flutes | 2 |
| Drill Depth | 30mm | 30.0000mm |
| Adapter Style | HC Drill Sleeve with Pocket |
| Drill Diameter Tolerance | 0.010000 to 0.025000mm |
| Coolant Supplied | Yes |
| Material | Diamond |
| Flute Construction | Helical Flute |
| Overall Length | 80mm | 80.0000mm |
| Assembly Length | 36.9mm |
| Drill Point | 1.1mm |
| Helix Type | Right Hand Helix/Flute |
| Adapter / Shank / Bore Diameter | 8.0000mm |
| MFR Part No. | 6771206 |
| Hand Preference | Right |
| Drill Diameter | 6.3500mm |
