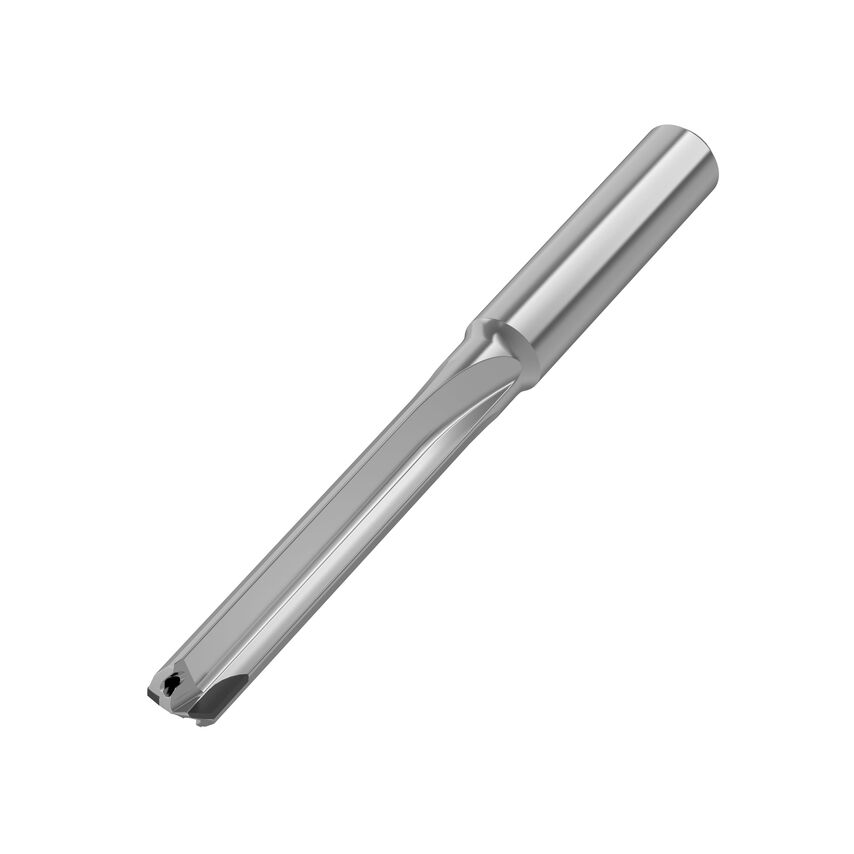

PCD Drill B467 5 x D Internal CoolantSolid Carbide Drills
| Finish/Coating | Uncoated |
| Flute Length | 77mm | 77.0000mm |
| Drill Point | 2.11mm |
| Number of Flutes | 2 |
| Unit Measured | Metric |
| Flute Construction | Straight Flute |
| Shank Length | 45.0000mm |
| Adapter Type | Cylindrical |
| Adapter Style | Straight-Cylindrical |
| Drill Depth | 60mm | 60.0000mm |
| Adapter / Shank / Bore Diameter | 14.0000mm |
| Drill Diameter Tolerance | 0.001000 to 0.009000mm |
| Coolant Supplied | Yes |
| Hand Preference | Right |
| MFR Part No. | 6761181 |
| Material | Carbide |
| Drill Diameter | 12.5000mm |
| Primary Material | Non-Ferrous Materials |
| Overall Length | 124mm | 124.0000mm |
| Helix Type | Right Hand Helix/Flute |
| Assembly Length | 79.89mm |
| Functional Length | 121.8900mm |
