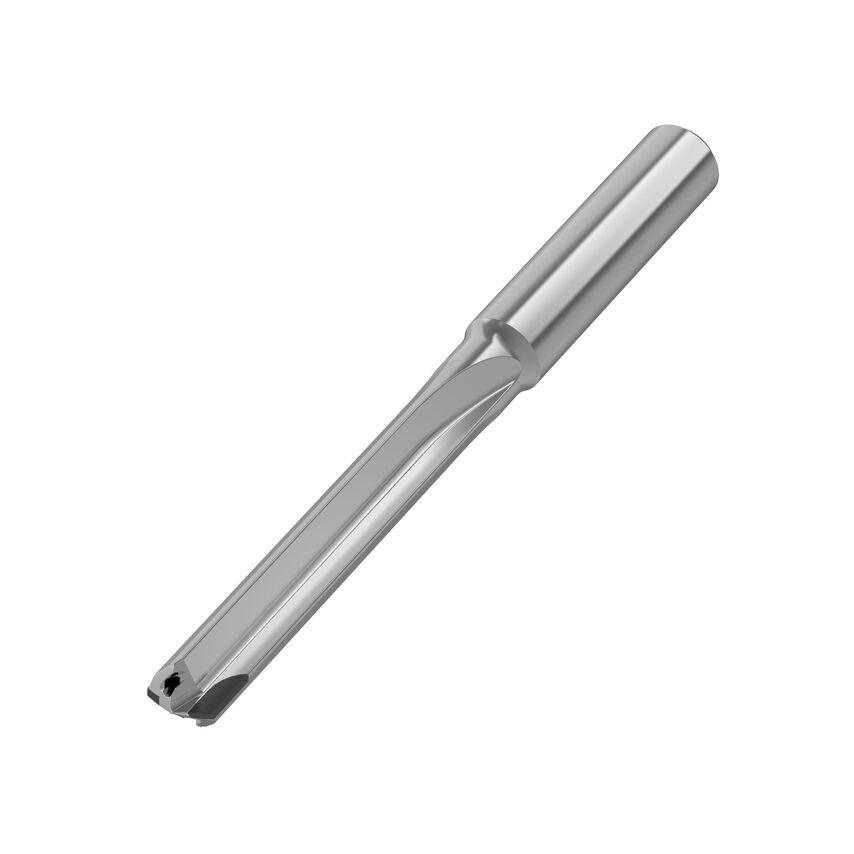

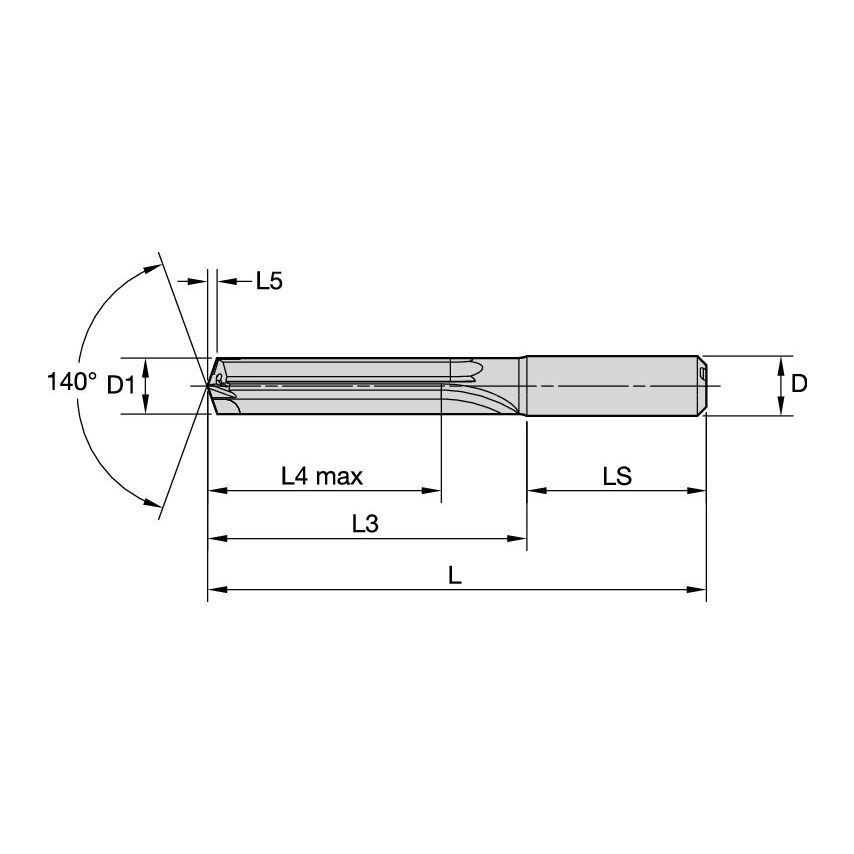

PCD Drill B467 5 x D Internal CoolantSolid Carbide Drills
| Overall Length | 133mm | 133.0000mm |
| Flute Length | 83mm | 83.0000mm |
| Drill Diameter | 15.0000mm |
| Flute Construction | Straight Flute |
| Number of Flutes | 2 |
| MFR Part No. | 6761186 |
| Shank Length | 48.0000mm |
| Drill Depth | 63mm | 63.0000mm |
| Drill Point | 2.55mm |
| Assembly Length | 88.45mm |
| Adapter Style | Straight-Cylindrical |
| Primary Material | Non-Ferrous Materials |
| Material | Carbide |
| Finish/Coating | Uncoated |
| Helix Type | Right Hand Helix/Flute |
| Coolant Supplied | Yes |
| Drill Diameter Tolerance | 0.001000 to 0.009000mm |
| Adapter / Shank / Bore Diameter | 16.0000mm |
| Adapter Type | Cylindrical |
| Hand Preference | Right |
| Unit Measured | Metric |
| Functional Length | 130.4500mm |
