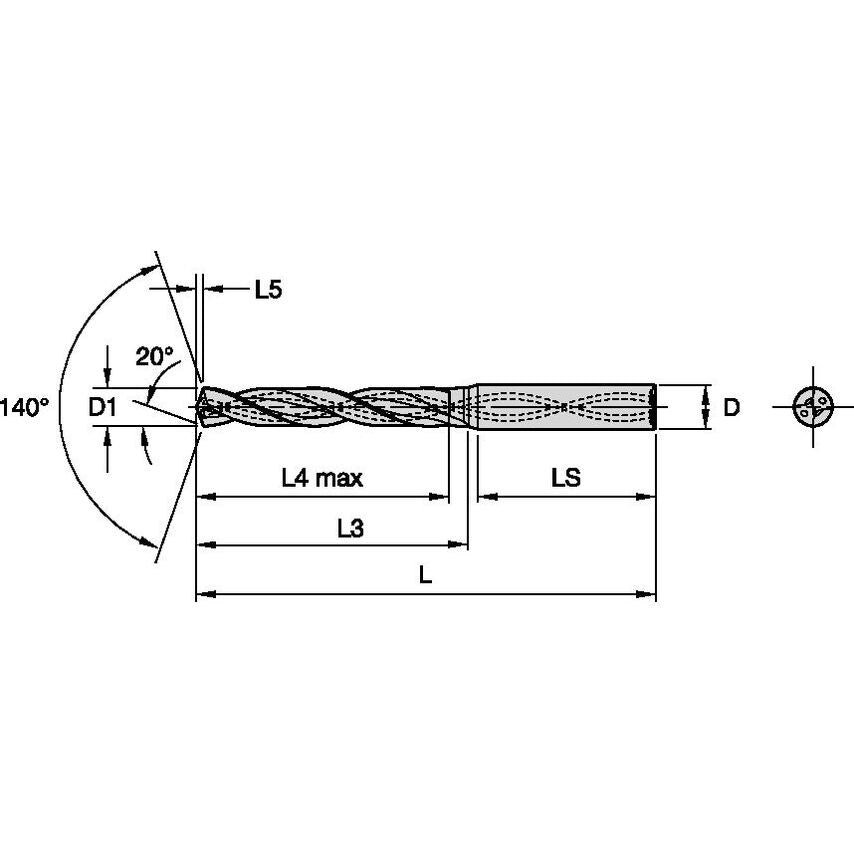

HPX B226 8 x D Through CoolantHigh-Performance Solid Carbide Drills
| Coolant Supplied | Yes |
| Drill Depth | 41mm | 41.0000mm |
| Overall Length | 87mm | 87.0000mm |
| Flute Length | 49mm | 49.0000mm |
| Adapter Type | Cylindrical |
| Unit Measured | Metric |
| Finish/Coating | TiN/AlTiN |
| Helix Type | Right Hand Helix/Flute |
| MFR Part No. | 6782339 |
| Helix Angle | 33.275 |
| Drill Diameter | 4.7000mm |
| Primary Material | Steel |
| Functional Length | 85.9500mm |
| Adapter Style | Straight-Cylindrical |
| Shank Length | 36.0000mm |
| Drill Point | 1.05mm |
| Adapter / Shank / Bore Diameter | 6.0000mm |
| Flute Construction | Helical Flute |
| Material | Carbide |
| Hand Preference | Right |
| Assembly Length | 58.95mm |
| Number of Flutes | 2 |
| Drill Diameter Tolerance | 0.004000 to 0.016000mm |
| Coolant Diameter | 0.7000mm (0.0882in) |
