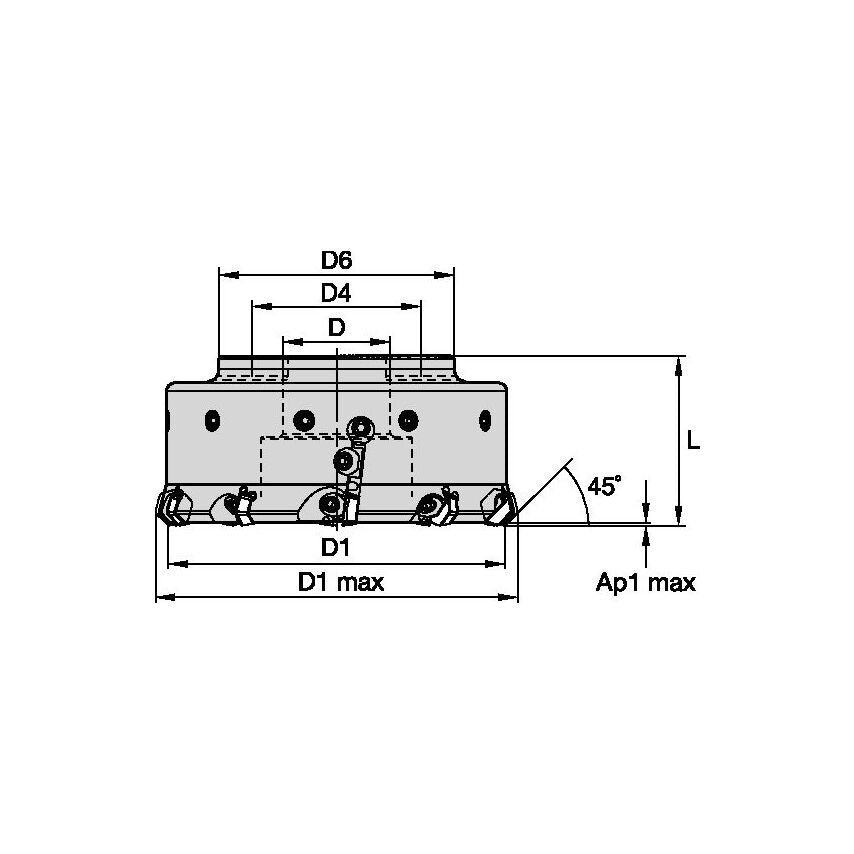

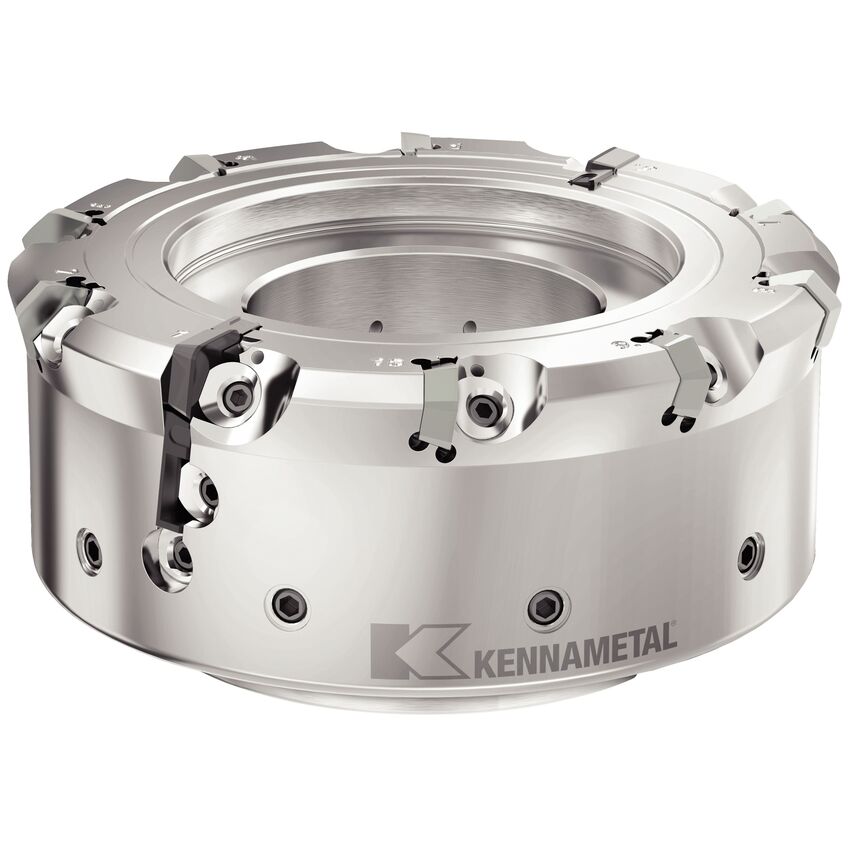

KCFM 45 IC12 Shell MillFace Milling
| Max. Depth of Cut | 1.0900mm |
| Insert Shape | S-Square 90 |
| Coolant Supplied | Yes |
| MFR Part No. | 6764353 |
| Adapter Type Machine Side | Shell Mill |
| Clamp Type | Wedge Clamp Before Insert |
| Body Material | Steel |
| Center Cutting Tool | No Center Cutting |
| Hand Preference | Right |
| Body Diameter Max | 134mm |
| Milling Application | Face Mill |
| Number of Flutes | 10 |
| Unit Measured | Imperial |
| Number of Inserts | 10 |
| Maximum Cutting Diameter | 136.53mm |
| Hub Diameter | 80.01mm | 80.0100mm |
