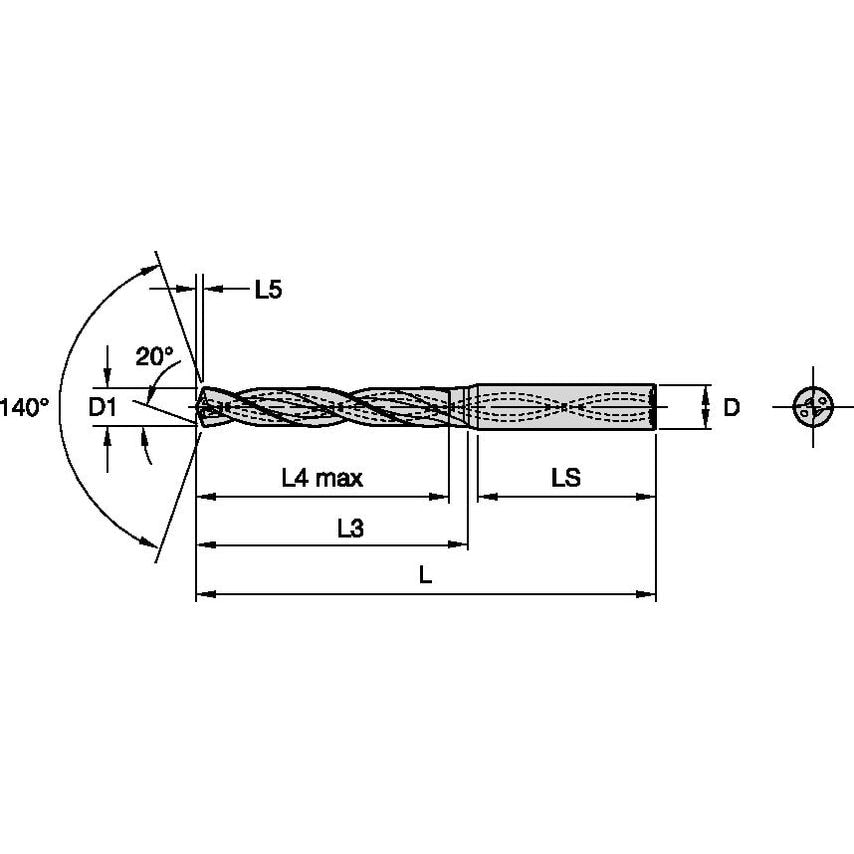

HPX B226 8 x D Through CoolantHigh-Performance Solid Carbide Drills
| Drill Diameter | 10.2000mm |
| Unit Measured | Metric |
| Overall Length | 158mm | 158.0000mm |
| Primary Material | Steel |
| Flute Construction | Helical Flute |
| Drill Diameter Tolerance | 0.007000 to 0.025000mm |
| Coolant Diameter | 1.4400mm (0.0472in) |
| MFR Part No. | 6782396 |
| Material | Carbide |
| Shank Length | 45.0000mm |
| Coolant Supplied | Yes |
| Helix Angle | 27.714 |
| Number of Flutes | 2 |
| Adapter / Shank / Bore Diameter | 12.0000mm |
| Adapter Type | Cylindrical |
| Drill Point | 2.16mm |
| Helix Type | Right Hand Helix/Flute |
| Drill Depth | 96mm | 96.0000mm |
| Finish/Coating | TiN/AlTiN |
| Assembly Length | 113.84mm |
| Adapter Style | Straight-Cylindrical |
| Functional Length | 155.8400mm |
| Hand Preference | Right |
| Flute Length | 110mm | 110.0000mm |
