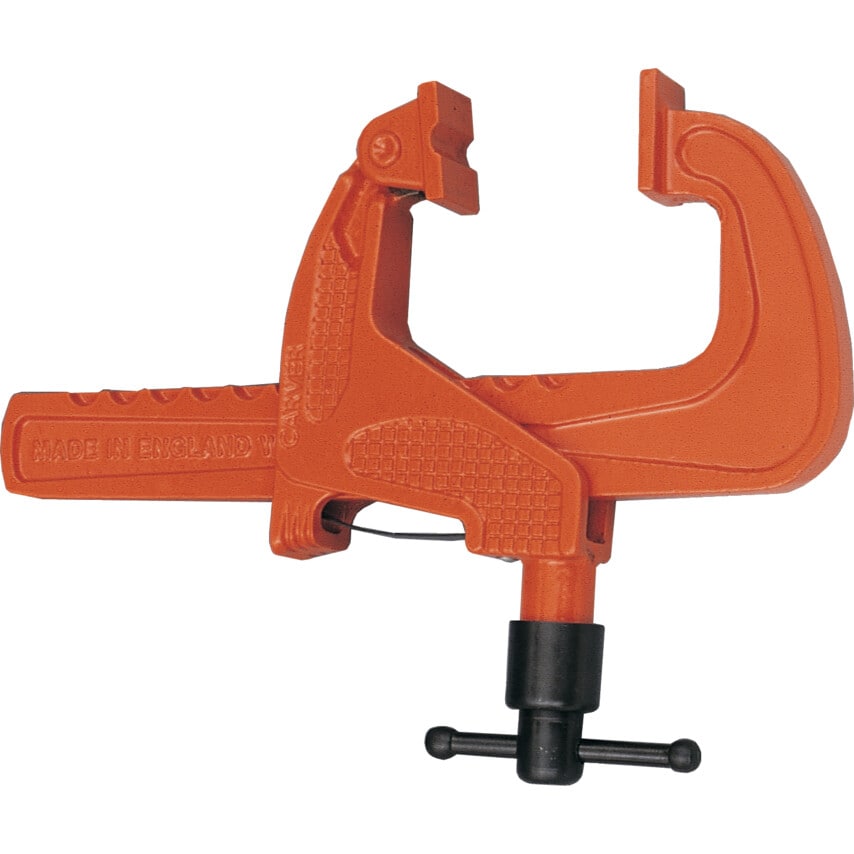

Carver Rack Clamps are designed to cope with the toughest of engineering requirements, especially in fabrication, welding and maintenance. Consisting of a J shape notched bar and sliding jaw. Finished in a bright orange epoxy coating for durability.
No long screws to bend, or critical working parts exposed to weld spatter. The action of tightening the clamps does not impose rotation on the workpiece and the jaws may be reversed and the clamp used in reverse action.
Features and benefits
J shape jaw for secure and easy clamping
Anti-splatter shield protects the adjustment screw from weld splatter damage
Spring loaded jaw mechanism holds jaw in position when pressure is removed
Tightening action will not rotate work-piece for complete control
Epoxy coating for long lasting durability
Available in standard to heavy duty variations
Typical Applications

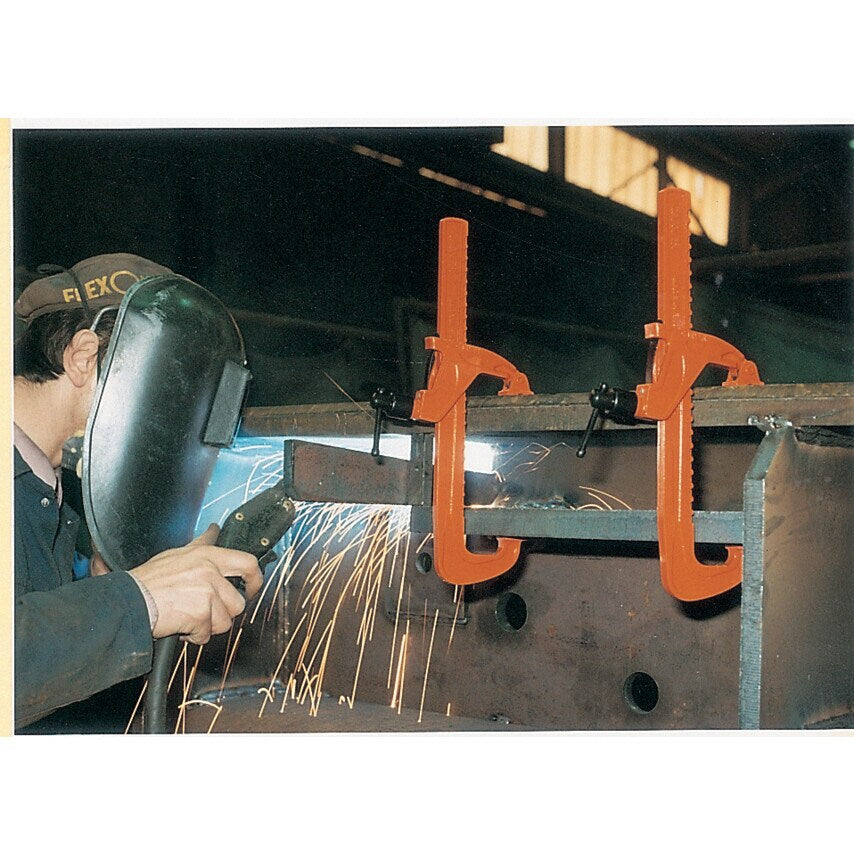

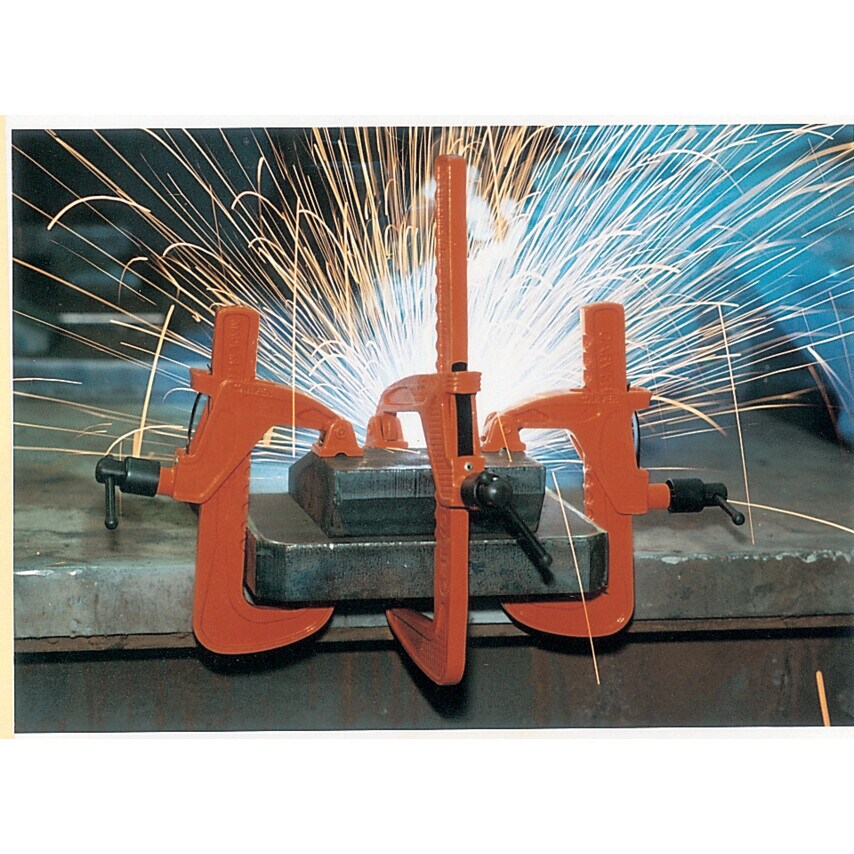

Welding
Fabrication
Maintentance
| MFR Part No. | T321-250mm |
| Clamp Type | Heavy-Duty |
| Weight | 9.8kg |
| Type | Rack Clamps |
| Holding Capacity | 6000lb |
| Capacity | 150mm |
| Length | 403mm |
| Load | 2700daN |
| Series | T321-250 |
| Reach | 115mm |
| Product Type | Heavy Duty Clamps |
