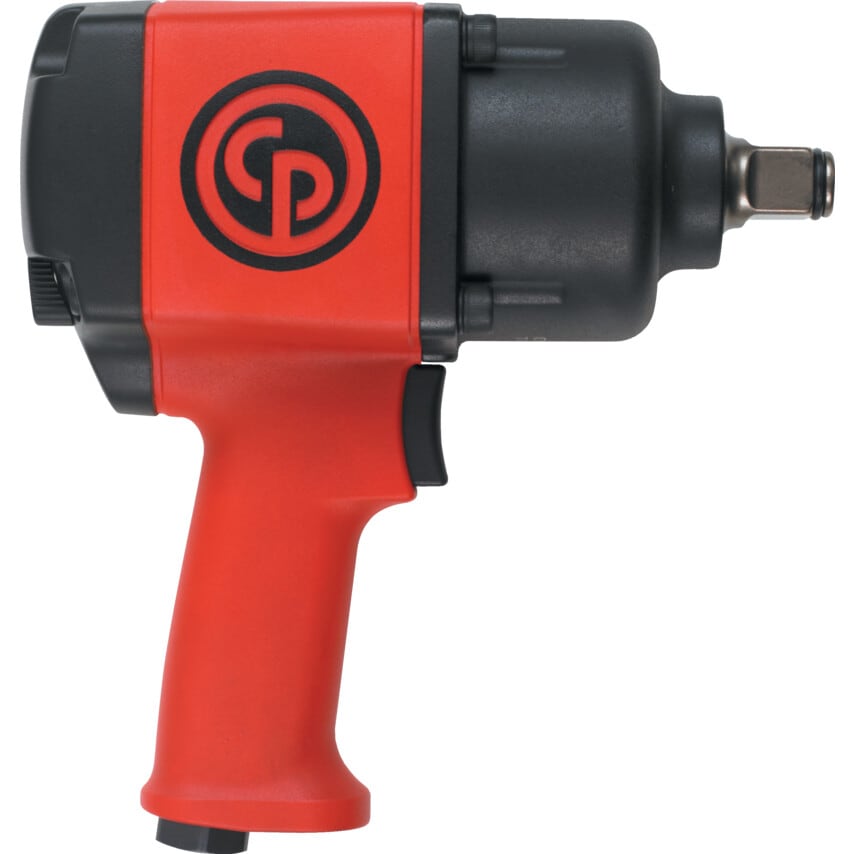

Despite its lightweight design, the Chicago Pneumatic CP7763 3/4in. extra heavy-duty impact wrench delivers a powerful performance with a maximum torque of 1627Nm and a no-load speed of 6300rpm, making it suitable for high-stress environments where precision and power are crucial. The wrench is engineered for ease of use, featuring an intuitive forward/reverse lever and a four-position power regulator on both sides for adaptable performance.
This Chicago Pneumatic wrench's ergonomic slide handle with a soft touch grip ensures comfortable use over long periods, reducing user fatigue. Built to last, it incorporates a twin hammer mechanism, a durable steel motor, and an aluminium housing with a composite cover on the clutch housing to withstand rigorous daily use.
Features and Benefits
Offers 1630Nm of torque, ideal for heavy-duty applications
Intuitive levers and adjustable power settings enhance operational flexibility
Ergonomic design includes a slide handle with a soft grip, maximising comfort and control
Durable construction features steel motor and aluminium housing for extended tool life
| Overall Length | 220mm |
| Series | CP7763 |
| Power Source | Air |
| Drive Size | 3/4in |
| Noise/ Vibration Information | 96dBA |
| Actual Air Consumption | 30 CFM / 3.6 L/min |
| Compatible Hose Inner Diameter | (1/2\) 13.00mm |
| Square Drive | 3/4in |
| Model Number | CP7763 |
| No Load Speed | 6300rpm |
| Body Shape | Pistol |
| Average Air Consumption | 7.5 CFM / 3.6 L/min |
| MFR Part No. | 8941077630 |
| Item | Air Impact Wrench |
| Length | 229mm |
| Air Inlet Size | 3/8 NPT |
| Maximum Torque | 1627Nm |
| Noise/Vibration Information | 96dBA |
| Product Type | Air Impact Wrench |
| Body Style | Pistol Grip |
| Weight | 5.3kg |
| Torque Range | 136 - 1288Nm |
