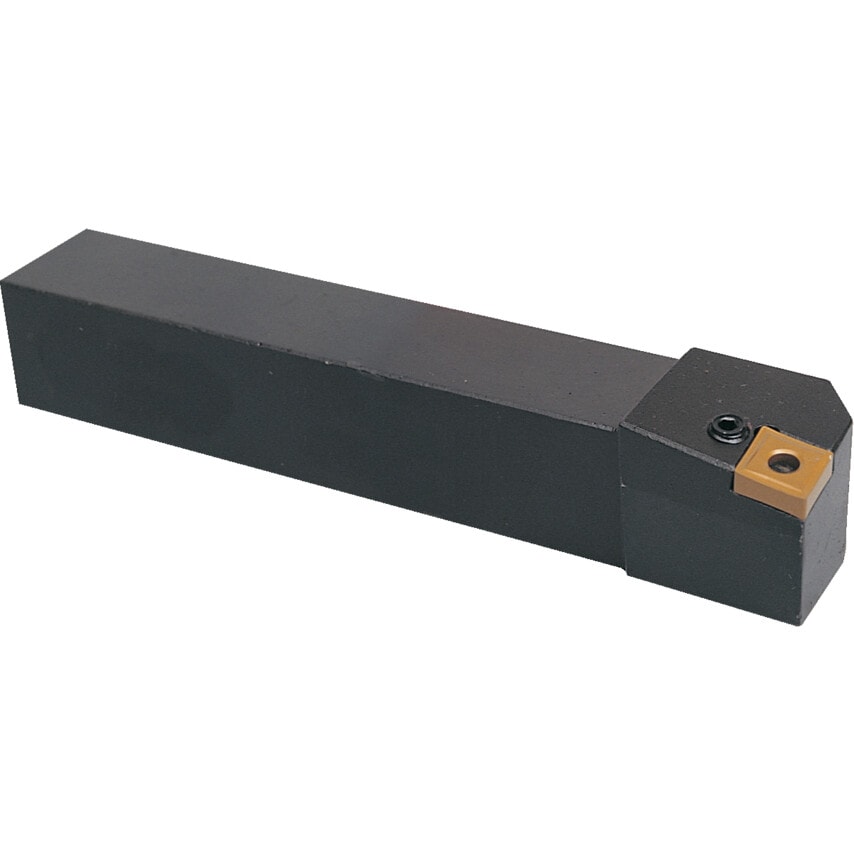

95 Approach for negative 80 rhombic inserts.
| Cutting Direction | Left Hand |
| Insert Shape | 80 Rhombic |
| Head Length (l2) | 42 |
| Insert Style | CN_A | CN_G |
| MFR Part No. | PCLNL3232P19 |
| Shank Width (b) | 32 |
| Overall Length (l1) | 170mm |
| Toolholder Style | PCLN |
| Clearance Angle | 0\u00b0 |
| Overall Length | 170mm |
| Approach Angle | 95\u00b0 |
| Shank Style | Offset |
| ISO Designation | PCLNL 3232P19 |
| Centre to Cutting Tip | 40mm |
| Shank Height | 32mm |
| Cutting Height (h1) | 32mm |
| Insert Size | 1906 |
| Set Type | Individual Toolholder |
| Side to Cutting Tip (f) | 40 |
| Shank Height (h) | 32mm |
| Shank Material | Steel |
| Neck Length | 42mm |
| Insert Holding Type | Lever Lock |
| Cutting Height | 32mm |
| Coolant Delivery | External |
