£0.24
IC30N Grade description: (P05 - P25). Cermet grade for carbon steel, tool steel, alloy steel, steel casting, malleable cast iron, austenitic stainless steel, martensitic stainless steel, free cutting steel. Suitable for medium speed, medium feed and interrupted cut.
IC9250 (P20-P30 M15-M30) TiCN/Al2O3/TIN multilayer, CVD coated. For grooving/turning forged, low carbon, low alloyed steel parts. For finishing & medium machining of stainless.
IC907 (P10-P30 M05-M20 S05-S20 H05-H15) Tough submicron substrate, TiAIN PVD coated. Suitable for turning heat resistant alloys, austenitic stainless and hard steel at low to medium speeds.
IC9025 (P20-P30 M15-M30) TiCN/Al2O3/TIN multilayer, CVD coated. For roughing/semi-finishing at medium speed. For unstable machining conditions. Very tough.
Chip Breaker: SM. Application: Finish.
Chip Breaker: 14. Application: Finish/Medium.

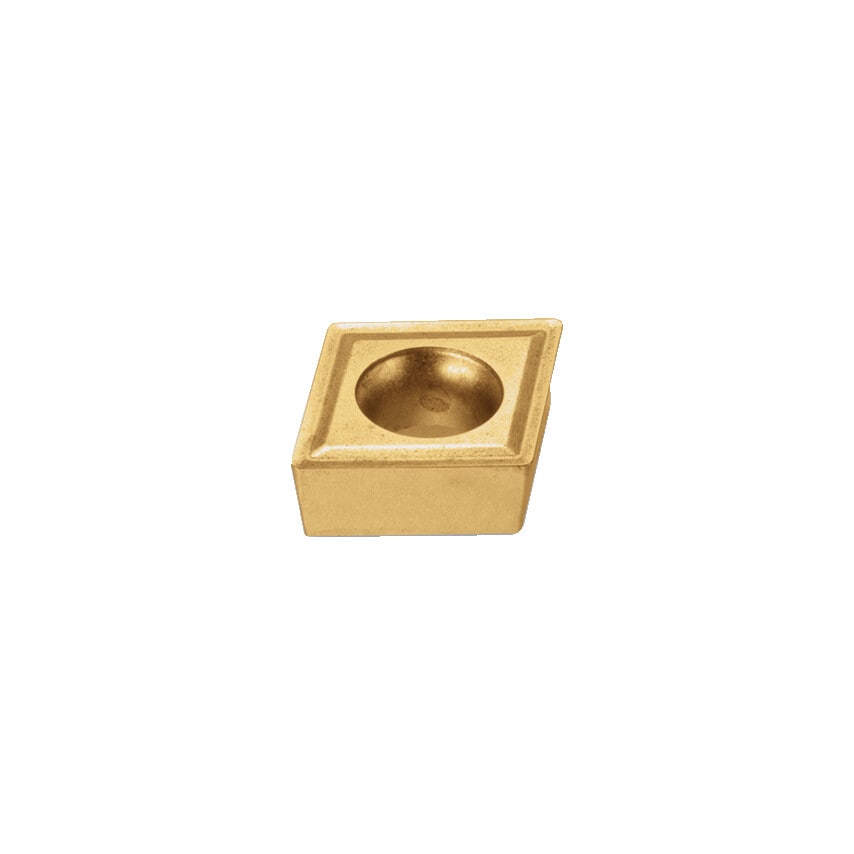

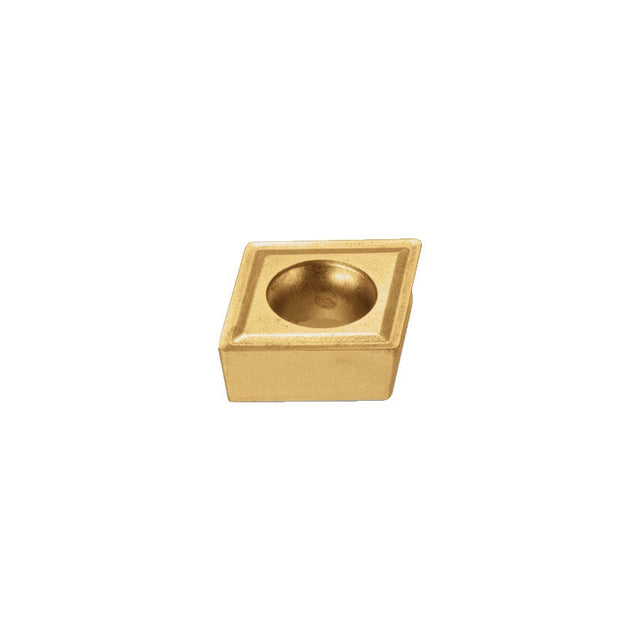

| Manufacturer Grade | IC9250 |
| Shape | 80\u00b0 Rhombic |
| MFR Part No. | 5507534 |
| ISO Category Grade | M | P |
| Corner Radius | 0.8 |
| Material | Carbide |
| ISO Designation | CCMT 09T308-14 |
| Cutting Direction | Neutral |
| Material Application | Nonferrous Metals | Steels |
| Cutting Edge Length | 9.7mm |
| Thickness | 3.97mm |
| ISO Cut | M05 to M20 | P10 to P35 |
| Clearance Angle | 7\u00b0 |
| Pack Quantity | 1 |
| Insert Size | 09T308 |
| Finish/Coating | Al2O3+TiCN+TiN |
| Chipbreaker | 14 |
| Inscribed Circle | 9.525mm |
| ISO Category | M | P |
| Insert Style | CCMT |
