Metric.

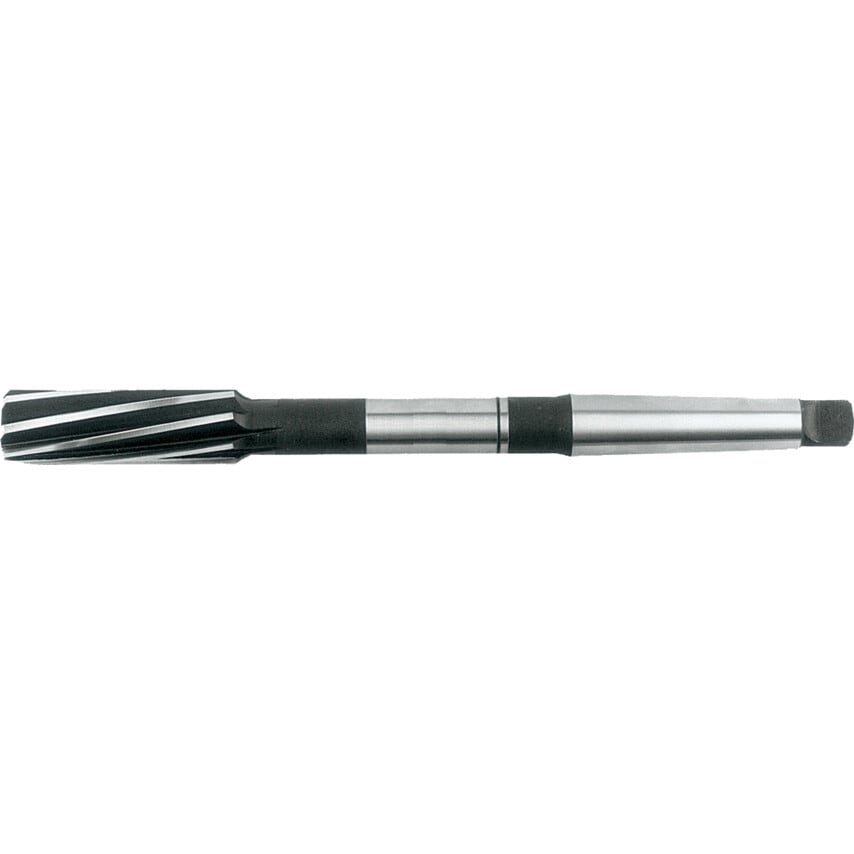

The European version of machine reamers ideally suited for use on high performance CNC machines. They are also available, to special order, with a higher cobalt content or made from solid carbide for the machining of tougher more exotic materials.
Manufactured to BS 328-4 and DIN 208.
Metric Limits of Tolerance (to H7) - See left hand side.
| Taper Shank Size | 1 |
| Material | Cobalt High Speed Steel |
| Material Grade | M35 |
| Shank Type | Morse Taper |
| Reamer Diameter | 9mm |
| Standards Met | BS 328-4 | DIN 208 |
| Reamer Type | Fixed |
| Finish/Coating | Steam Tempered |
| Overall Length | 162mm |
| Flute Length | 36mm |
| Cutting Direction | Right Hand |
| Number of Flutes | 6 |
| Flute Type | Left Hand Spiral |
| Diameter Tolerance | 0.012 - 0.006 |
| Length Type | Standard Length |
