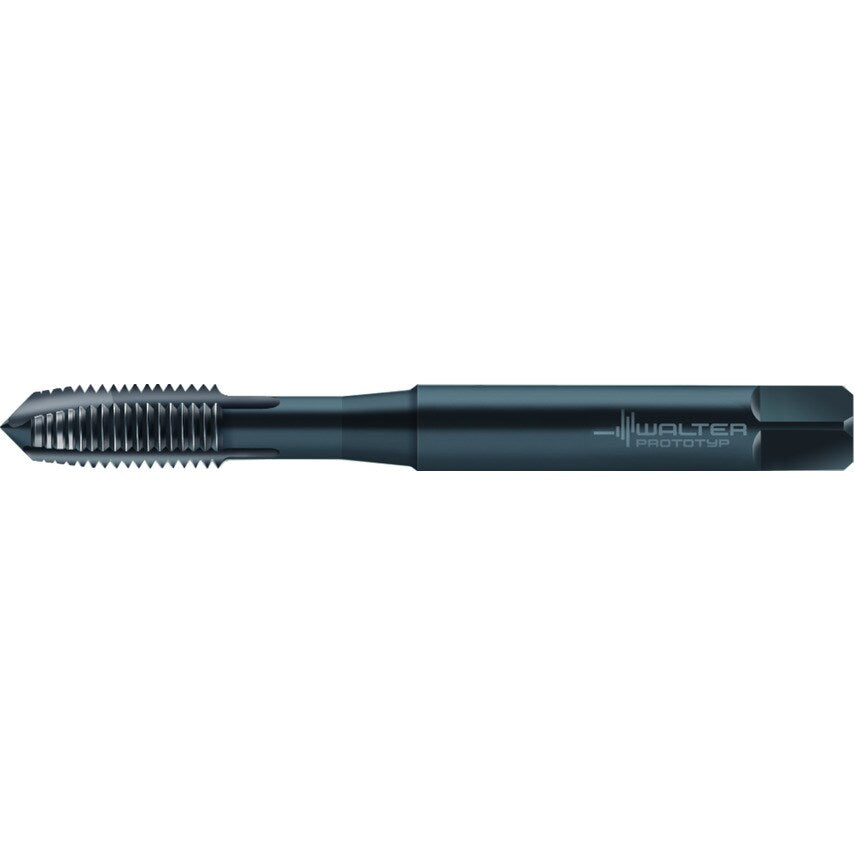

HSS-E machine taps Prototex Xpert M B = 3.5-5xTP (plug chamfer) 3xD EGM/6HMOD DIN 40435 Suitable for through hole VAP EGM 5 P=0.0315in
| Tool Designation | M203009-EGM5 |
| Cutting Edge Length | 15mm |
| Shank Diameter | 6mm |
| Number of Grooves | 3 |
| Thread Pitch | 0.8mm |
| Thread Size | EGM 5 |
| Usable Length | 30mm |
| MFR Part No. | 6149722 |
| Clamping Width | 4.9mm |
| Driving Square Length | 8mm |
| Overall Length | 80mm |
