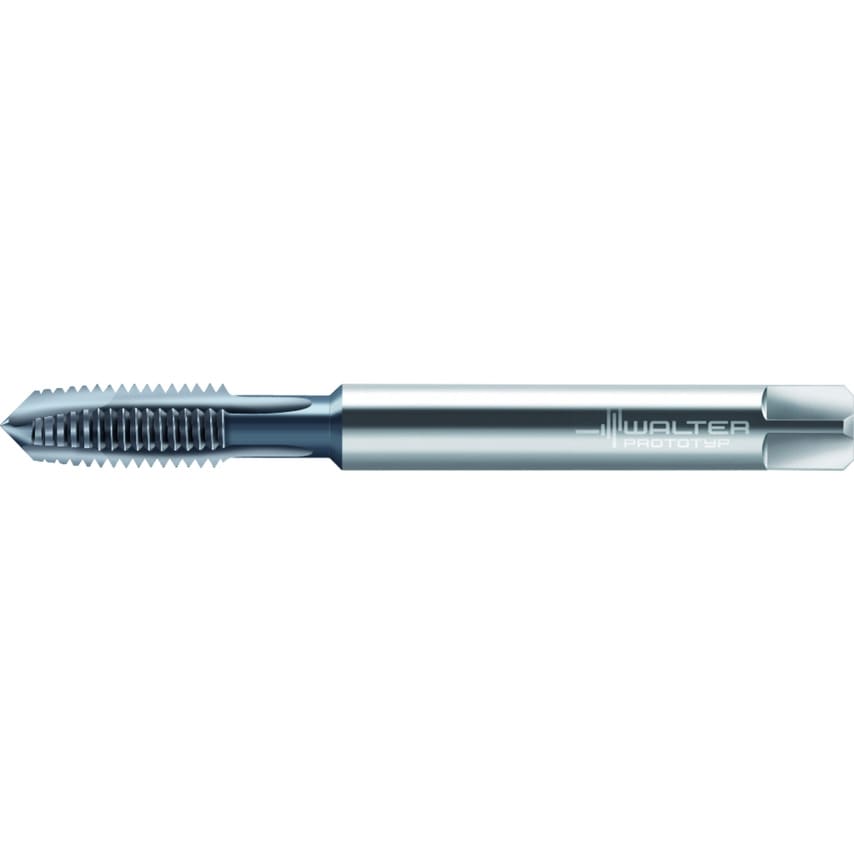

HSS-E PM machine taps Prototex TiNi B = 3.5-5xTP (plug chamfer) 2xD M/6HX ~DIN 371 Suitable for through hole M 10 P=0.0591in
| Tool Designation | 202161-M10 |
| MFR Part No. | 5075936 |
| Number of Grooves | 3 |
| Driving Square Length | 11mm |
| Thread Size | M 10 |
| Thread Pitch | 1.5mm |
| Overall Length | 100mm |
| Shank Diameter | 10mm |
| Cutting Edge Length | 20mm |
| Clamping Width | 8mm |
| Usable Length | 33.5mm |
