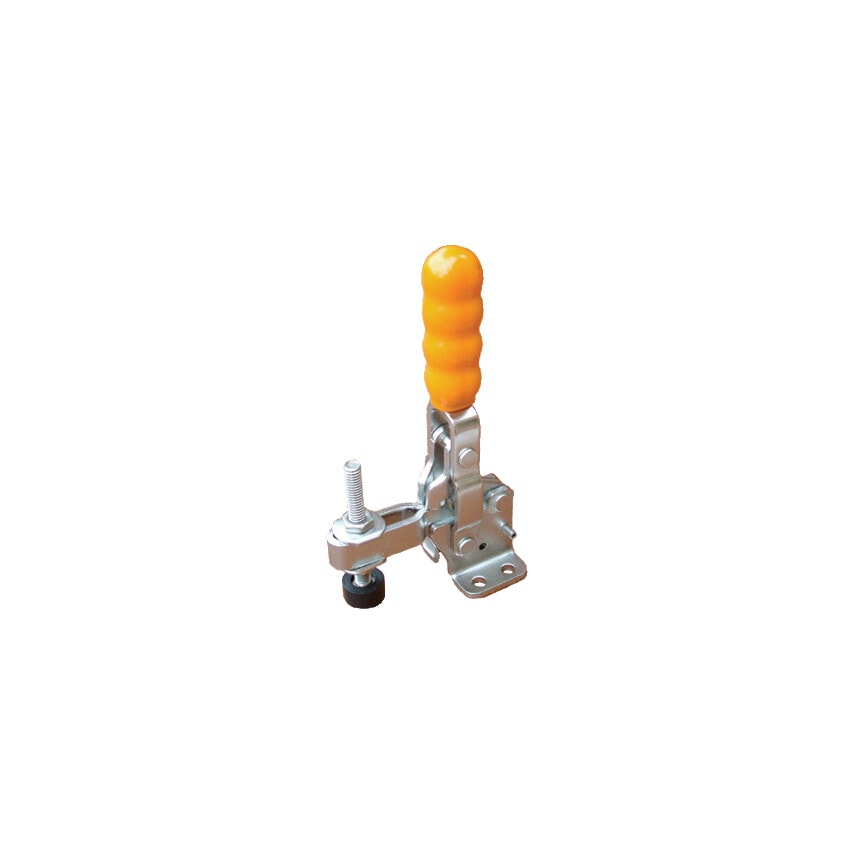

Features: Comfortable, cushioned PVC orange handle grips.
Specification: The main components are of zinc plated and passivated steel. Rivets are of stainless steel, which burnishes and work-hardens with use, the rivets of the larger clamps rotating in hardened bushes or directly in the close-toleranced holes of hardened parts.

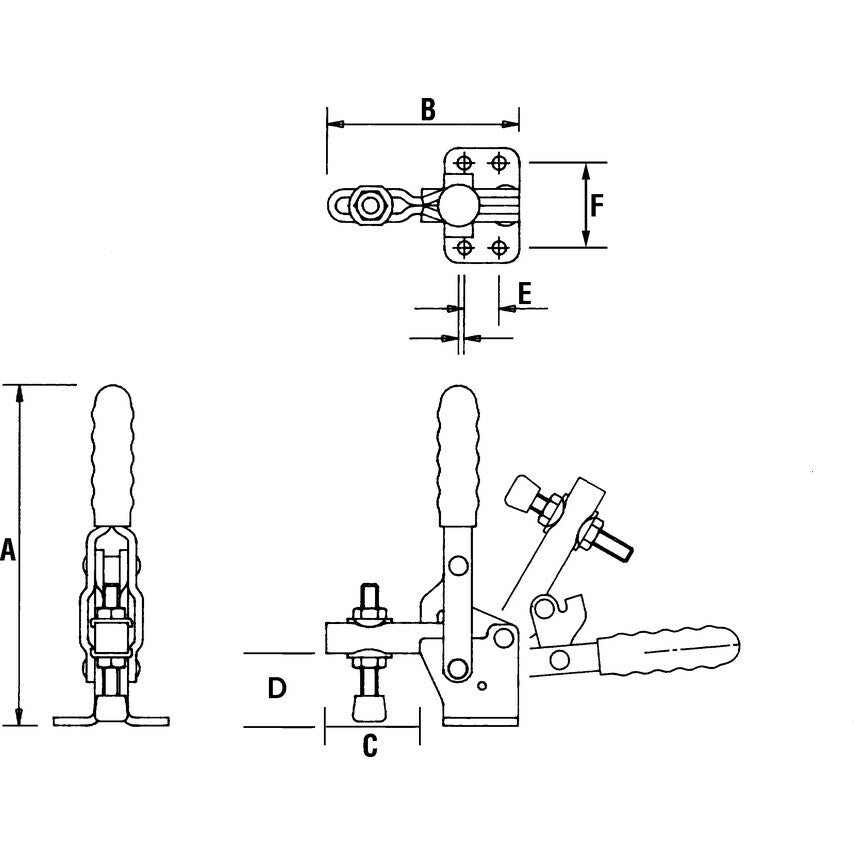

| Length | 79mm |
| Bar Movement | 175\u00b0 |
| Nominal Holding Force | 200daN |
| Style | Flanged Base Adjustable Spindle |
| Weight | 0.2kg |
| Supplied With | FW06/12 Flanged Washers | MB0650 Setscrew & Nuts |
| Width | 42mm |
| Type | Manual Clamp |
| Height | 135mm |
| Clamp Type | Flanged |
| Product Type | Vertical Toggle Clamp |
| Handle Movement | 95\u00b0 |
| MFR Part No. | V200/2B |
