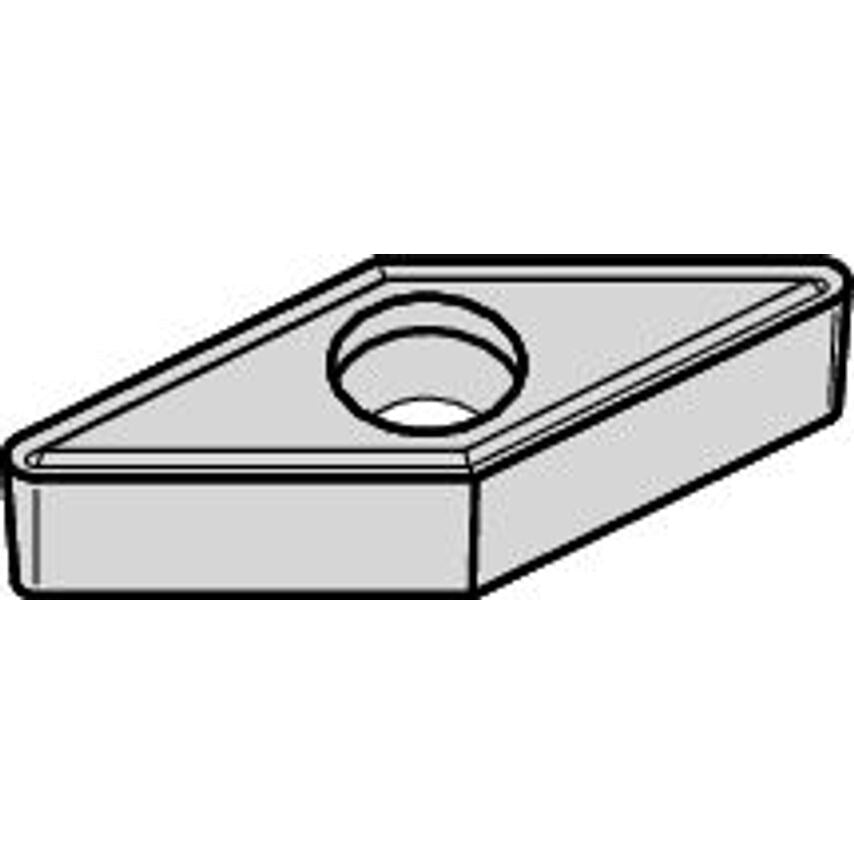

Screw-On InsertsISO/ANSI Carbide Inserts

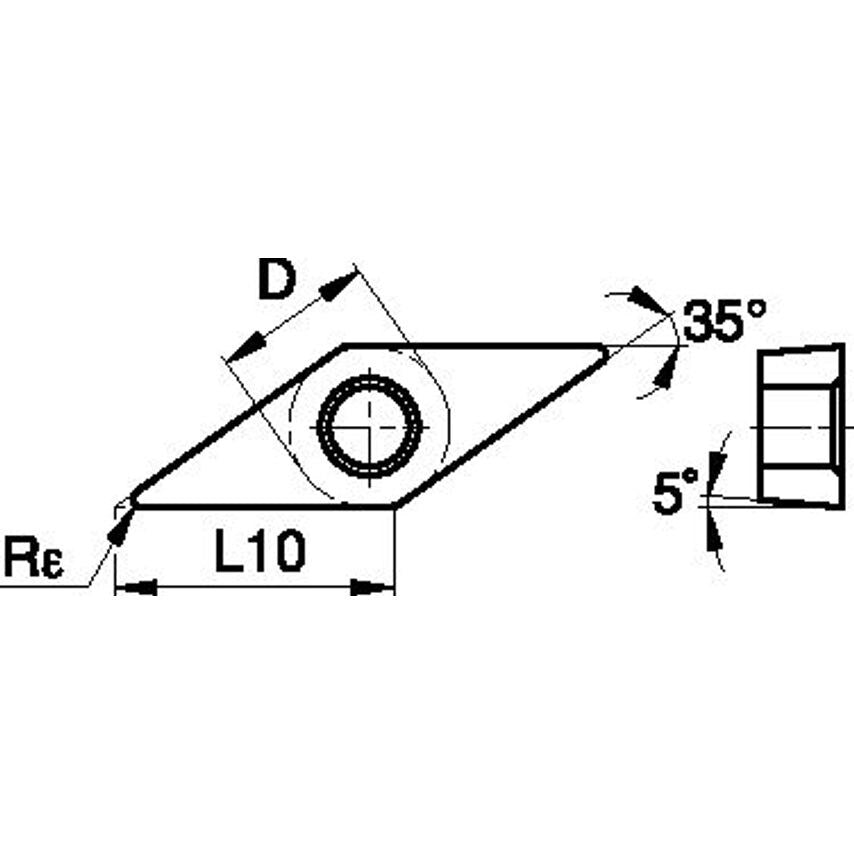

| Shape | 35\u00b0 Rhombic |
| Corner Radius | 0.2 |
| Inscribed Circle | 6.35mm |
| Material | Carbide |
| Material Application | Alloy | Cast Iron |
| ISO Cut | K10 to K20 | M10 to M20 | N10 to N20 | P10 to P20 | S10 to S20 |
| Cutting Edge Length | 11.2mm |
| Chipbreaker | LF |
| MFR Part No. | 1310841 |
| Manufacturer Grade | KC5010 |
| Body Material | Carbide |
| Insert Size | 1103 |
| Insert Style | VBMT |
| Clearance Angle | 5\u00b0 |
| Thickness | 3.18mm |
| ISO Category | K | M | N | P | S |
| ISO Category Grade | K | M | N | P | S |
| ISO Designation | VBMT 110302-LF |
| Product Type | Turning Inserts |
| Finish/Coating | AlTiN |
