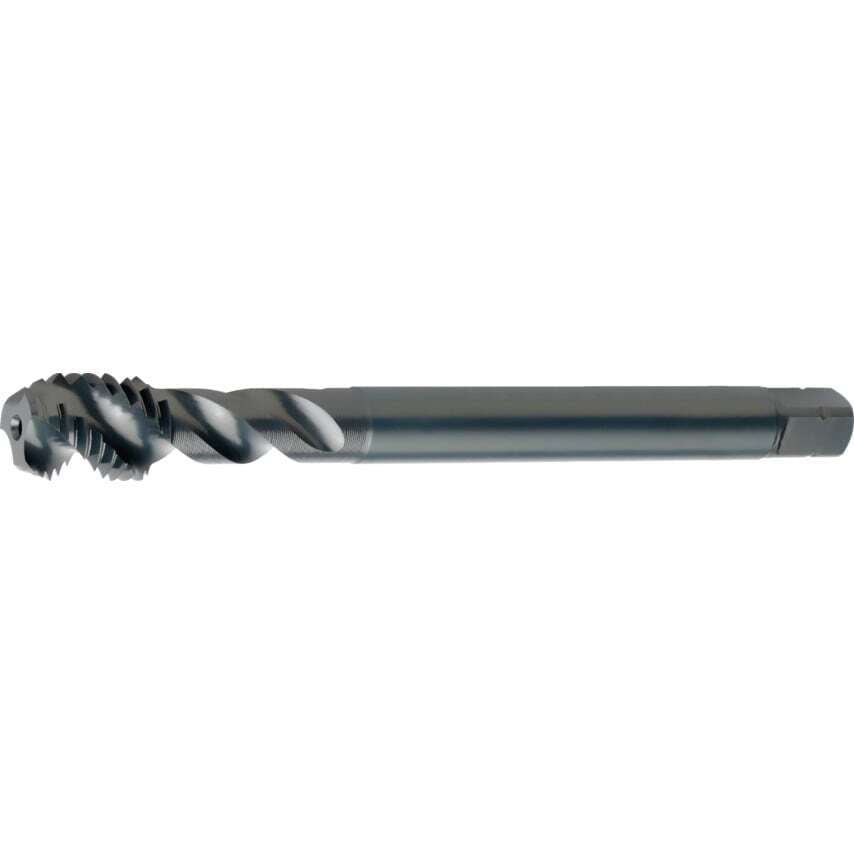

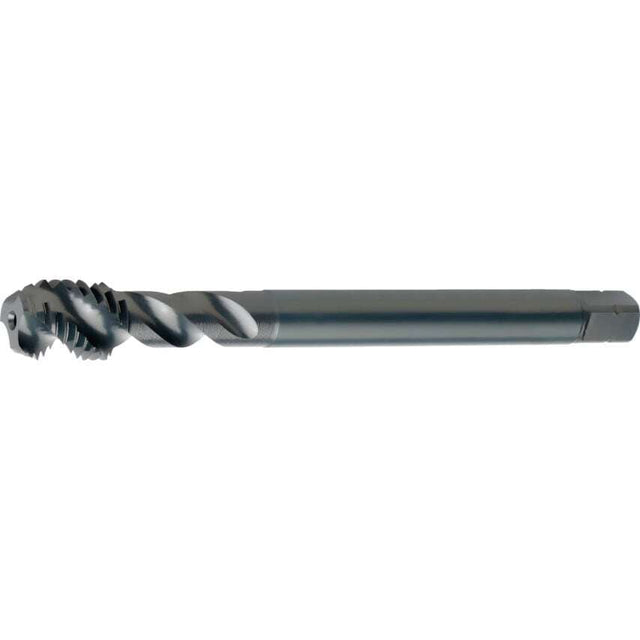

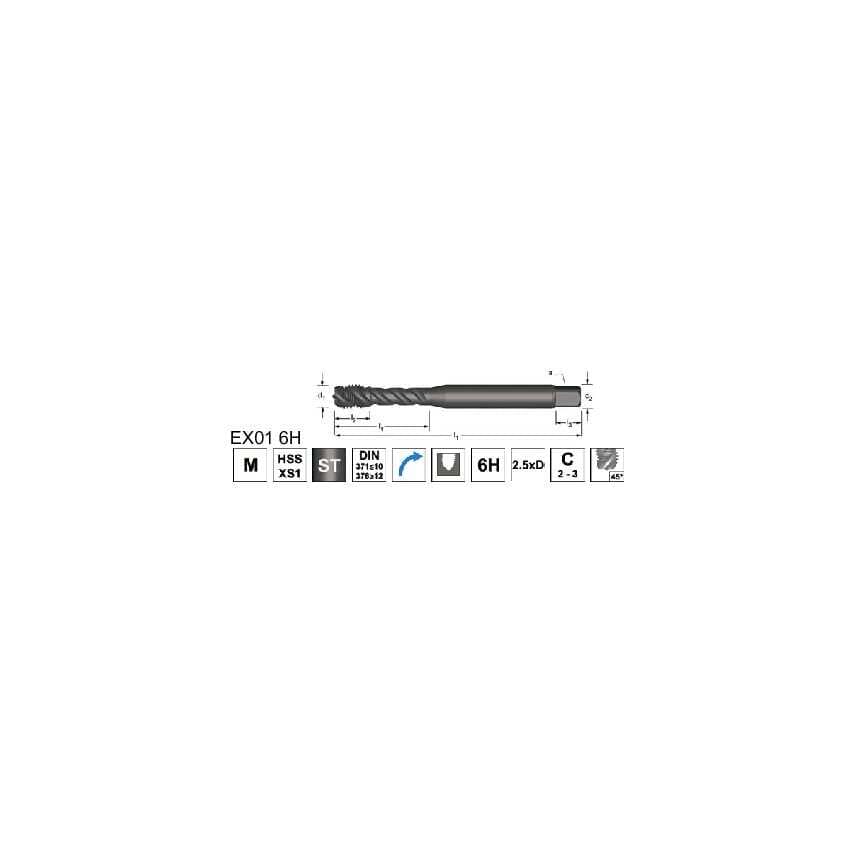

Dormer Spiral Point Machine Taps for through holes.With Blue finish. Taper lead to DIN form C. Tapping tolerance to 6H. Max depth 2.5 x D. Helix angle 45.
| Applications | P - Steel and cast steel |
| Material | HSSE |
| Flute Geometry (FDC) | Spiral Flute Geometry |
| Unit of Measurement | Metric |
| Tap Application | Blind Hole |
| Product Series | EX016H |
| Shank | Cylindrical Shank with Square |
| Finish | Steam Tempered |
| Application | Steel and Cast Steel |
| Thread Form | M - Metric coarse |
| Number of Flutes | 3 |
| Cutting Direction | Right |
| Tap Chamfer Style | C 2 - 3 |
| Standards | DIN 371 |
