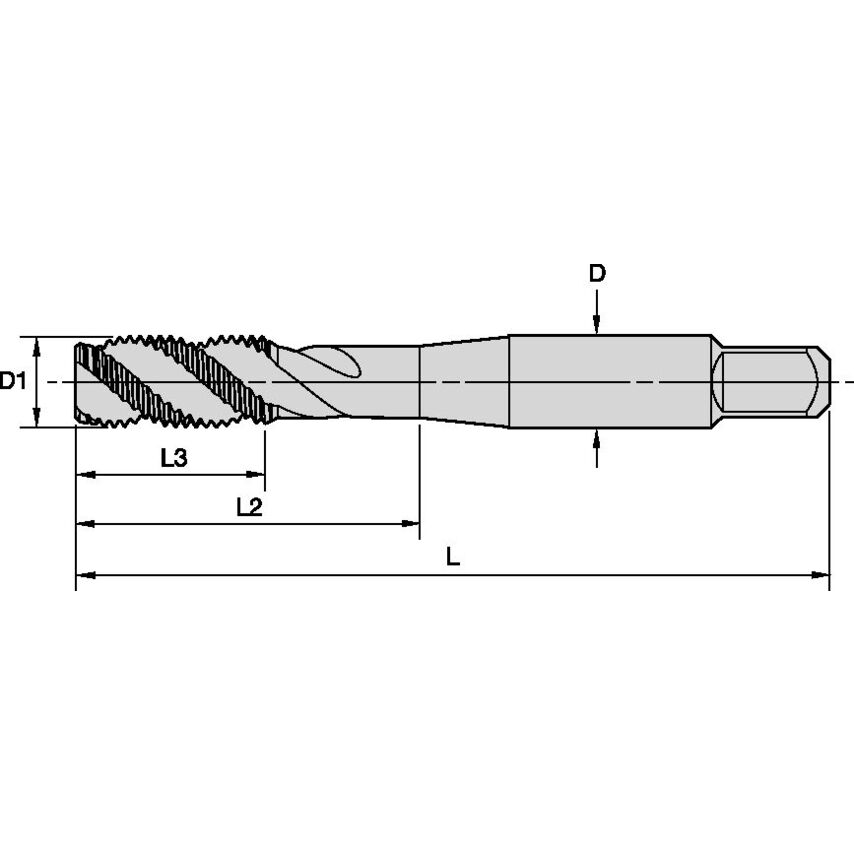

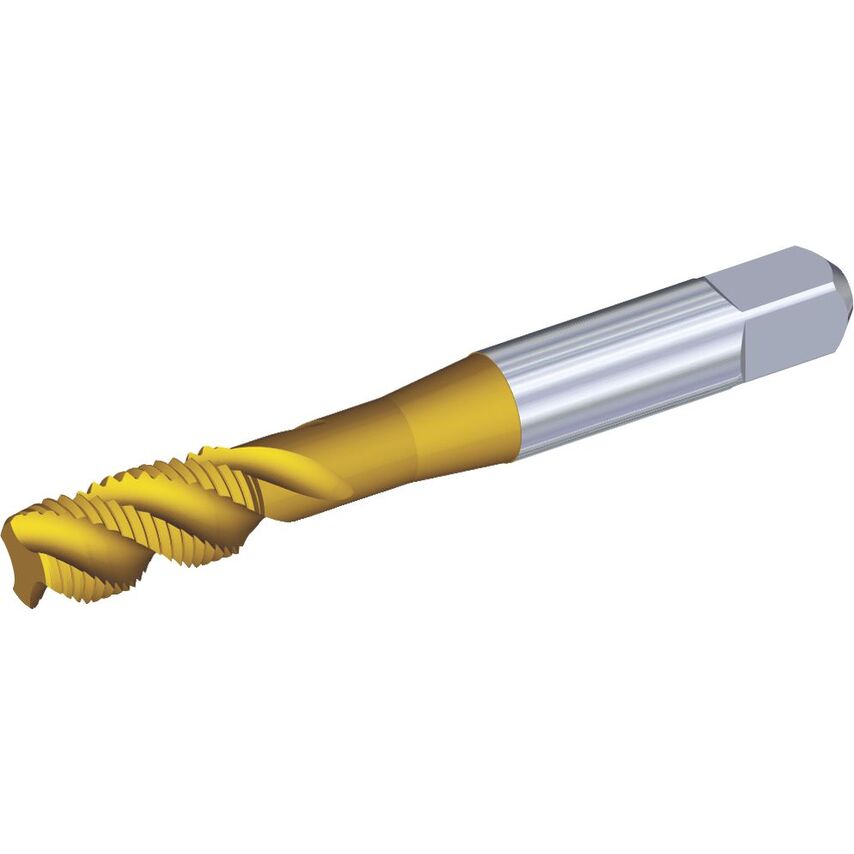

T838 - Form C Semi-Bottoming Chamfer - Machine Screw and Fractional - ANSI - Tension/Compression Holders
| Tap Application | 2 - Blind Hole |
| Thread Pitch Style | Nf/Unf |
| Number of Flutes | 3 |
| Hand Preference | Right |
| Thread Length | 12.7000mm |
| MFR Part No. | 6140635 |
| Overall Length | 61.7mm | 61.7000mm |
| Thread Diameter | 5.486mm |
| Cutting Tool Material | HSS-E |
| Neck Length | 11.7mm | 11.7000mm |
| Adapter Type Machine Side | Cylindrical |
