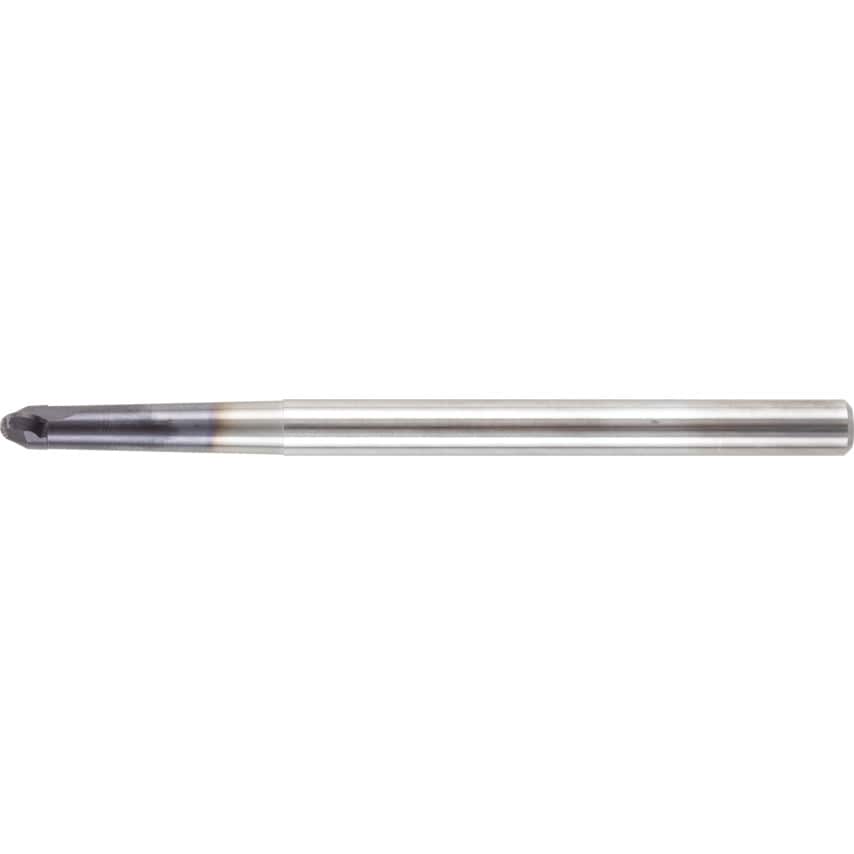

FXS-EQD Spherical Ball Endmills provides a spherical cutting edge that prevents chattering in the machine. Made with an ultra-fine micro-grain carbide they provide incredible wear resistance for prolonged tool life. Their high precision geometry helps eliminate the need of reworking whilst their high strength core utilises a thicker diameter for greater strength and rigidity. The high strength coating features increased hardness and greater oxidation threshold for even greater durability.
Features and Benefits
Ultra-fine mircro-grain carbide construction for incredible toughness
High strength core diameter for improved rigidity
TiAlN Tip coating improves hardness and oxidation resistance
Highly accurate thanks to high precision geometry
Specifications
2 Flutes
Ball nosed tip
TiAlN coating
Carbide construction
Metric measurements
Typical Applications
Milling
Steel
Heat treated steel
High hardness steel
Stainless steel
Cast iron
Titanium
| Coating | TiAlN |
| System of Measurement | Metric |
| Cutter Style | Ball Nose |
| Product Type | End Mills |
| Coolant Delivery | External |
| MFR Part No. | 8544030 |
| End Mill Type | End Mill |
| Cutter Diameter | 6mm |
| Length Type | Regular |
| Material | Carbide |
| Diameter | 6.0mm |
| Shank Type | Plain Round |
