1341D

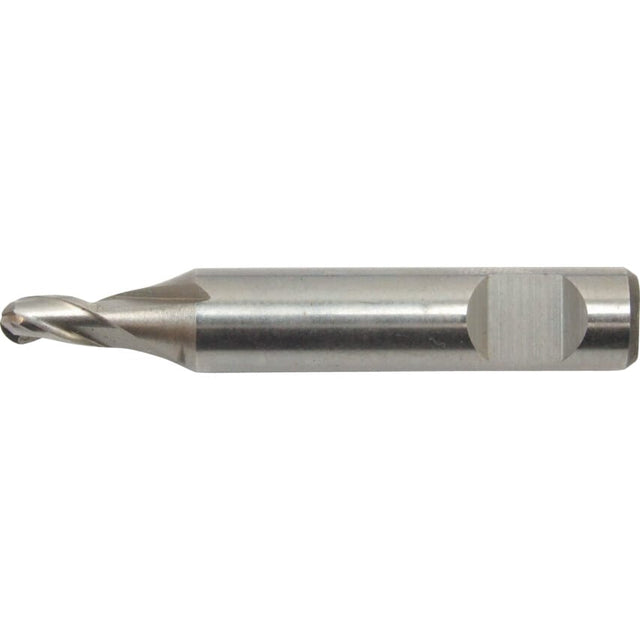

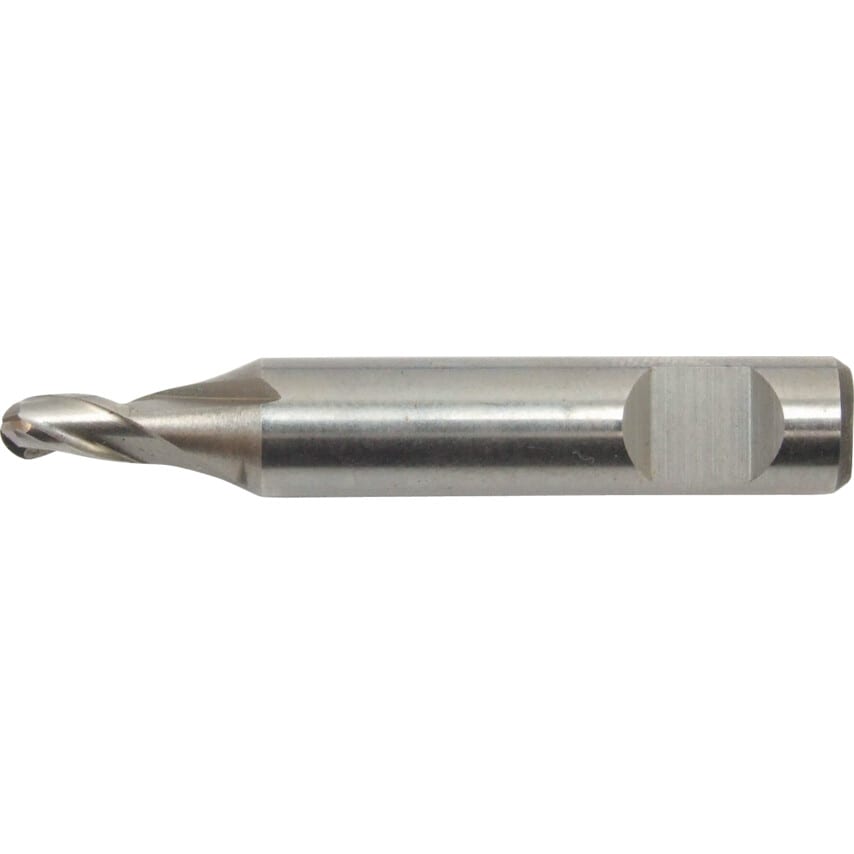

3-flute multi-purpose HSS-Co replaceable milling cutters for small diameter applications. To e8 h6 DIN1835B.
Dimensions:
Short Series:
2mm diameter, flute length 4.5mm, overall length 34mm, shank 6mm.
2.5mm diameter, flute length 7mm, overall length 35mm, shank 6mm.
4mm diameter, flute length 7mm, overall length 38mm, shank 6mm.
5mm diameter, flute length 8mm, overall length 39mm, shank 6mm.
Long Series:
4mm diameter, flute length 11mm, overall length 42mm, shank 6mm.
| Ball Nose Type | Ball Nose End Mill |
| Reach Type | Standard Neck |
| Cutter Diameter | 4mm |
| Series | Hydra-3 |
| Overall Length | 38mm |
| Cutting Direction | Right Hand |
| Number of Flutes | 3 |
| Shank Diameter | 6mm |
| Cutter Style | Ball Nose |
| Product Type | Milling Cutter |
| Flute Type | Helical |
| Coolant Delivery | External |
| Flute Length | 7mm |
| Length Type | Regular |
| Shank Type | Threaded |
| Cutting Diameter (mm) | 4mm |
| Standards Met | DIN 1835B |
| MFR Part No. | 1342D 040 |
| Milling Cutter Type | End Mills |
| Material | Cobalt High Speed Steel |
