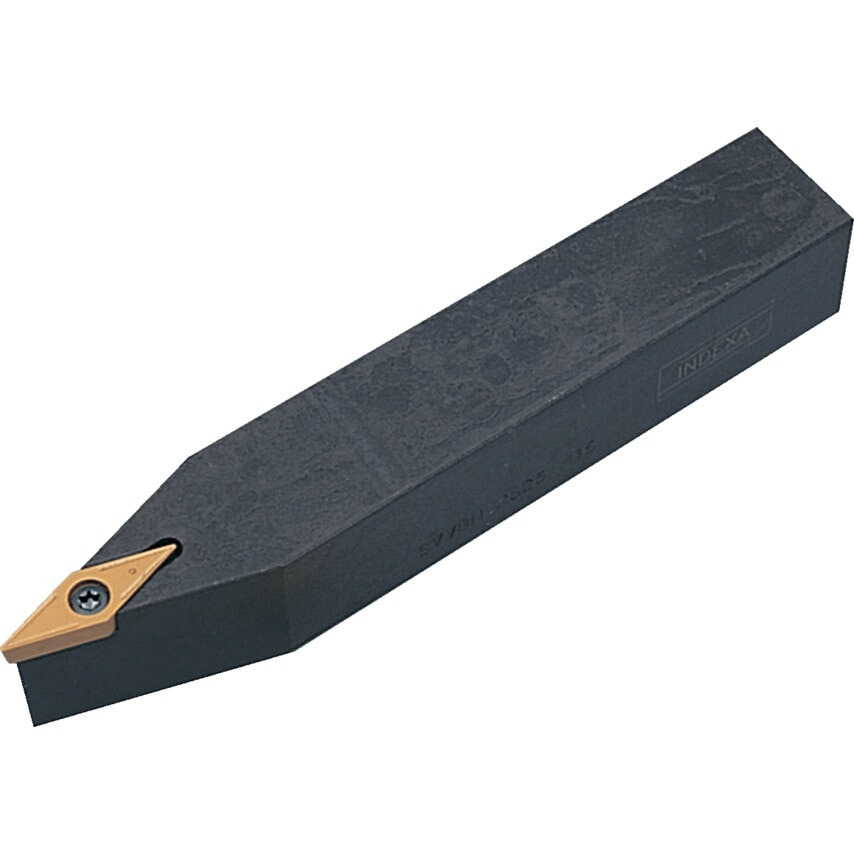

72.5 approach for 5 positive 35 rhombic inserts.

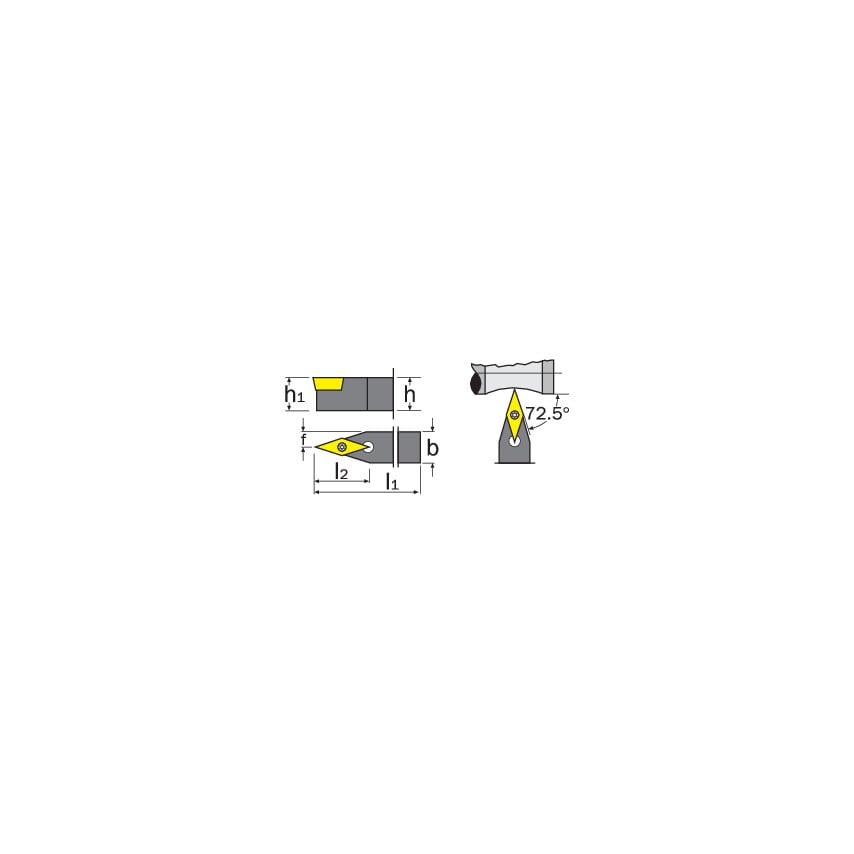

| Neck Length | 28mm |
| Cutting Height (h1) | 25mm |
| Approach Angle | 72.5\u00b0 |
| Shank Height (h) | 25mm |
| Toolholder Style | SVVB |
| Shank Width (b) | 25mm |
| Shank Material | Steel |
| MFR Part No. | SVVBN2525M16 |
| Cutting Direction | Neutral |
| Insert Shape | 35\u00b0 Rhombic |
| Insert Cutting Edge Length | 16mm |
| Coolant Delivery | External |
| Clearance Angle | 5\u00b0 |
| Product Type | External Toolholder |
| Set Type | Individual Toolholder |
| Head Length (l2) | 28mm |
| Insert Holding Type | Screw-On |
| Insert Inscribed Circle | 9.52mm |
| Side to Cutting Tip (f) | 13.1mm |
| Insert Style | VB_A | VB_M | VB_T |
| Overall Length (l1) | 150mm |
| Shank Style | Straight |
| ISO Designation | SVVBN 3225P16 |
| Insert Size | 1604 |
