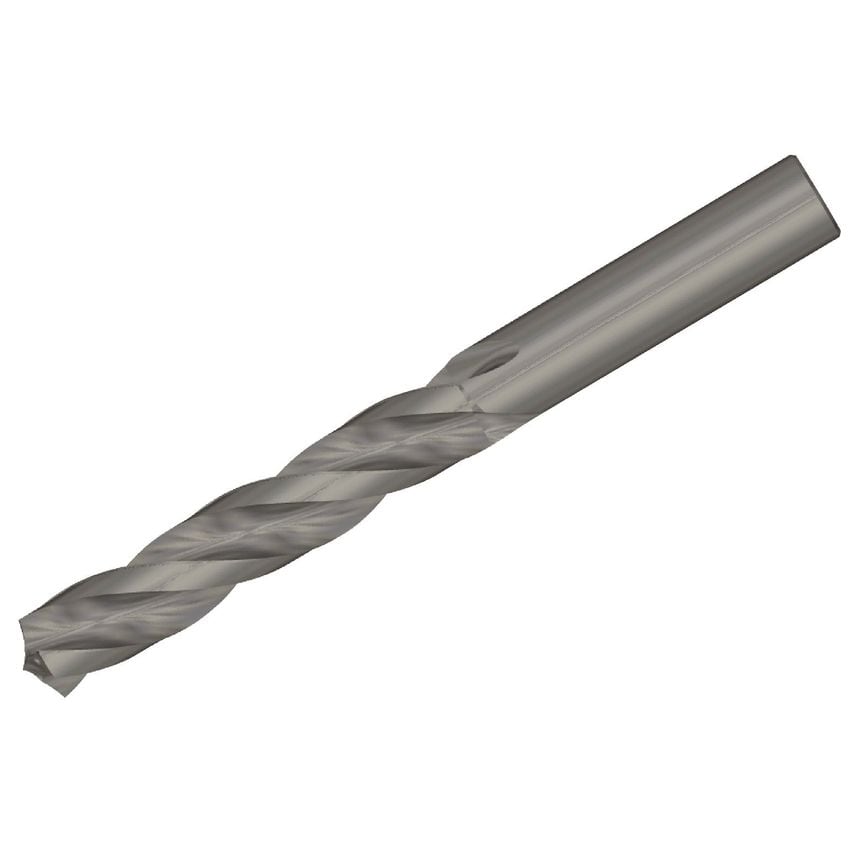

TF Drills Titanium Materials Through CoolantSolid Carbide Drills
| Drill Diameter | 7.9380mm |
| Gage Length | 52.5mm |
| Adapter Type | Cylindrical |
| Clamping Length | 36mm |
| Adapter Style | Straight-Cylindrical |
| Coolant Supplied | Yes |
| Hand Preference | Right |
| Coolant Delivery | Off-center Axial Coolant |
| Unit Measured | Imperial |
| Drill Point | 2.13mm |
| Number of Flutes | 2 |
| Flute Construction | Helical Flute |
| Assembly Length | 71.87mm |
| Adapter / Shank / Bore Diameter | 7.938mm | 7.9380mm |
| Drill Diameter Tolerance | 0.006000 to 0.015000mm |
| Finish/Coating | Uncoated |
| Flute Length | 50mm | 50.0000mm |
| MFR Part No. | 1762645 |
| Functional Length | 107.8700mm |
| Helix Type | Right Hand Helix/Flute |
| Shank Length | 57.5010mm |
| Material | Carbide |
| Drill Depth | 40.3mm | 40.3000mm |
| Overall Length | 110mm | 110.0000mm |
| Helix Angle | 30.001 |
