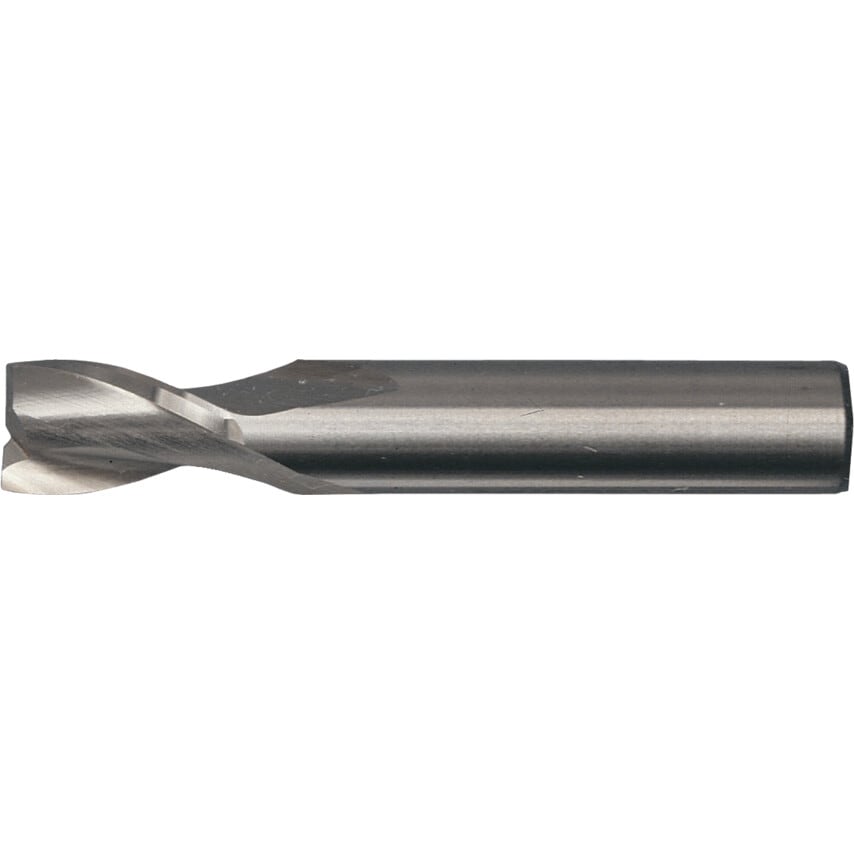

Regular Length.
Non-centre cutting, used for profile milling, milling keyways and producing open slots. Surface treatment: bright finish. Flute type: 30 Helix. Overall dimensions to DIN 844. Plain shank to DIN 1835A.
| Number of Flutes | 2 |
| Material | Cobalt High Speed Steel |
| Shank Type | Plain Round |
| Plunge Type | Centre Cutting |
| Shank Diameter | 10mm |
| Flute Length | 19mm |
| Standards Met | DIN 844 | DIN 1835A |
| Cutter Diameter Tolerance | e8 |
| Milling Cutter Type | Slot Drill |
| Helix Angle | 30\u00b0 |
| Cutter Style | Square End |
| System of Measurement | Metric |
| Cutter Diameter | 8mm |
| Shank Diameter Tolerance | H6 |
| Flute Type | Helical |
| Material Grade | M35 |
| Finish/Coating | Bright |
| Length Type | Short |
| End Mill Type | Slot Drill |
| Overall Length | 69.0mm |
| Product Type | Slot Drills |
| Cutting Direction | Right Hand |
| Coolant Delivery | External |
