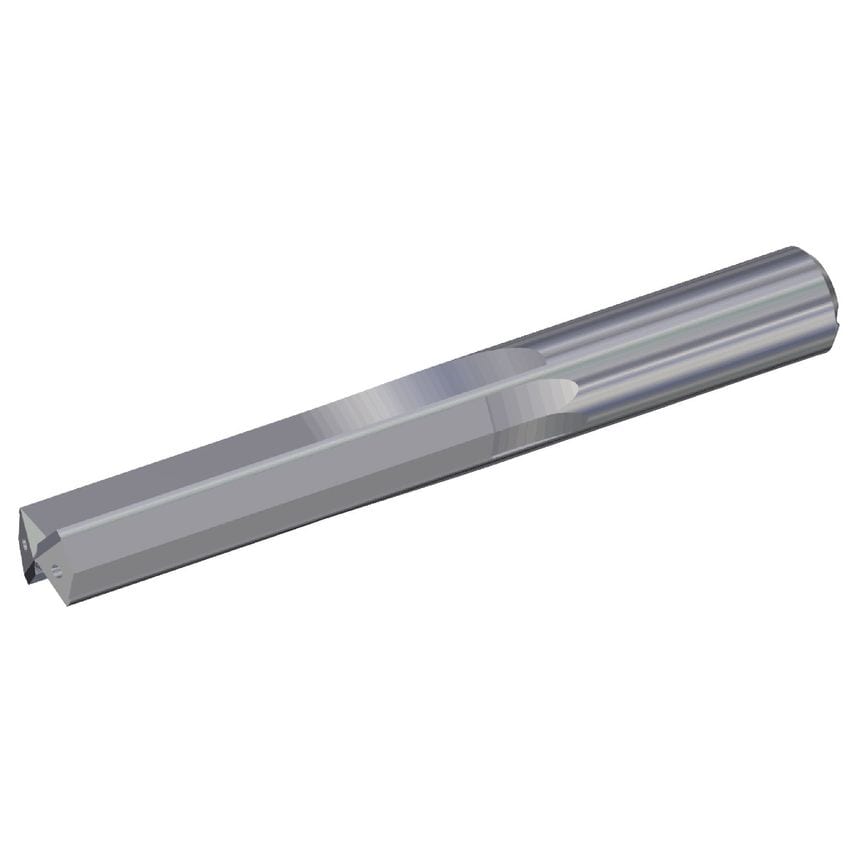

TX Drills Close Tolerance Holes Through CoolantSolid Carbide Drills
| Coolant Delivery | Off-center Axial Coolant |
| Drill Diameter | 3.1750mm |
| Unit Measured | Imperial |
| Primary Material | Cast Iron |
| MFR Part No. | 1201023 |
| Shank Length | 36.5000mm |
| Material | Carbide |
| Adapter / Shank / Bore Diameter | 4.763mm | 4.7630mm |
| Gage Length | 29.5mm |
| Helix Type | Right Hand Helix/Flute |
| Assembly Length | 51.76mm |
| Flute Construction | Helical Flute |
| Helix Angle | 0.000 |
| Flute Length | 27.5mm | 27.5000mm |
| Number of Flutes | 2 |
| Adapter Type | Cylindrical |
| Drill Point | 0.74mm |
| Overall Length | 66mm | 66.0000mm |
| Hand Preference | Right |
| Functional Length | 65.2600mm |
| Drill Diameter Tolerance | 0.001000 to 0.009000mm |
| Drill Depth | 21.4mm | 21.4000mm |
| Coolant Supplied | Yes |
| Finish/Coating | Uncoated |
| Adapter Style | Straight-Cylindrical |
| Clamping Length | 13.5mm |
