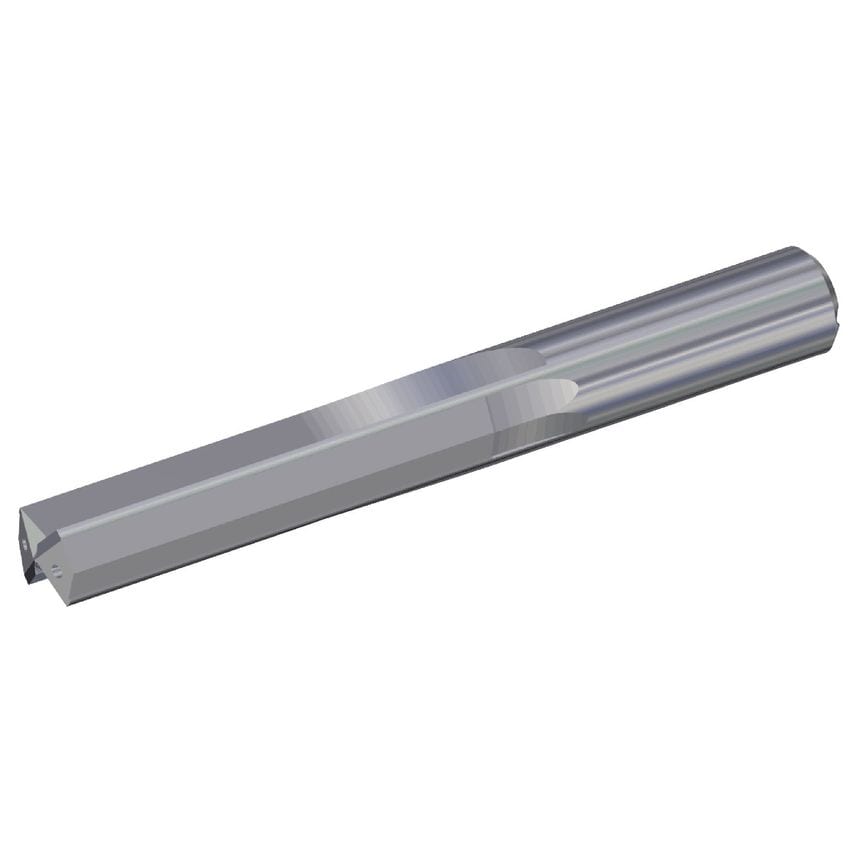

TX Drills Close Tolerance Holes Through CoolantSolid Carbide Drills
| Hand Preference | Right |
| Coolant Delivery | Off-center Axial Coolant |
| Flute Construction | Helical Flute |
| MFR Part No. | 1201047 |
| Drill Diameter Tolerance | 0.001000 to 0.012000mm |
| Material | Carbide |
| Overall Length | 118mm | 118.0000mm |
| Flute Length | 70.5mm | 70.5000mm |
| Helix Type | Right Hand Helix/Flute |
| Gage Length | 72.5mm |
| Shank Length | 45.4990mm |
| Drill Depth | 55.6mm | 55.6000mm |
| Primary Material | Cast Iron |
| Assembly Length | 72.039mm |
| Helix Angle | 0.000 |
| Unit Measured | Imperial |
| Drill Diameter | 12.7000mm |
| Drill Point | 2.961mm |
| Clamping Length | 43mm |
| Adapter Type | Cylindrical |
| Coolant Supplied | Yes |
| Adapter Style | Straight-Cylindrical |
| Number of Flutes | 2 |
| Functional Length | 115.0390mm |
| Finish/Coating | Uncoated |
| Adapter / Shank / Bore Diameter | 12.7mm | 12.7000mm |
