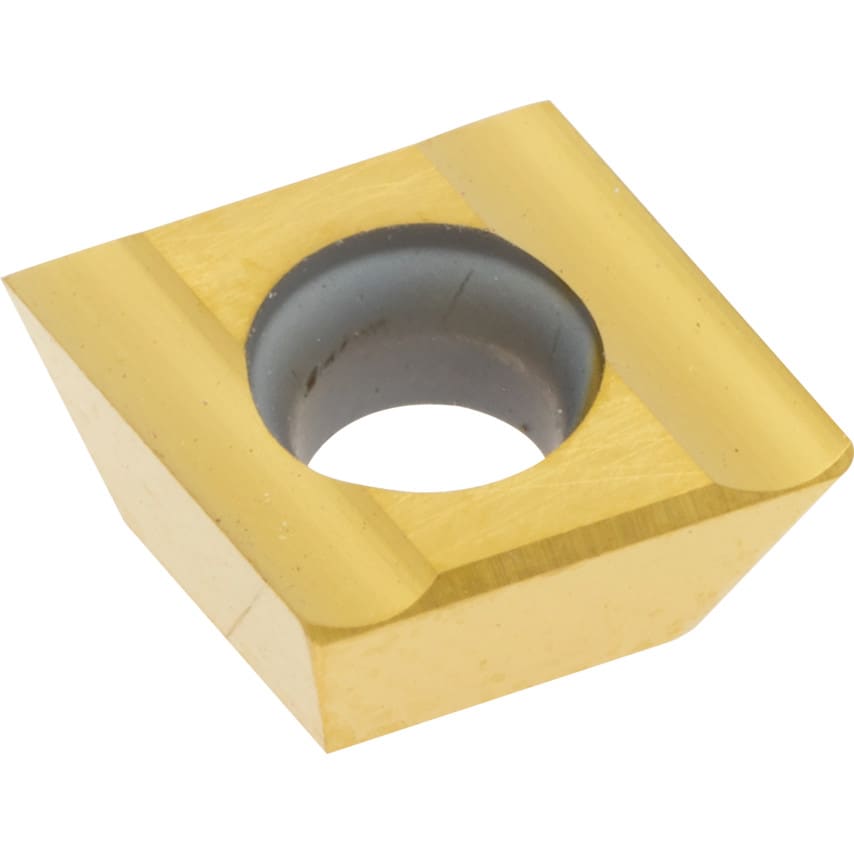

To suit: Indexa Seiki multi-Pro Spot Drills & Chamfer Mills.Insert Grade Description:(ISO P10/M10/K10) Tin Coated Multi-purpose grade for general use, can cut the majority of ferrous and non-ferrous materials used in industry.(ISO P20) Uncoated Grade for steel and stainless steel application.(ISO K10) Uncoated Grade for cast irons, aluminiums, and non-ferrous materials.
| ISO Designation | C22 GUX |
| ISO Category Grade | K | M | P |
| Insert Size | C22 |
| Pack Quantity | 1 |
| ISO Cut | K10 | M10 | P10 |
| Cutting Edge Length | 6.5mm |
| Insert Style | GUX |
| Material | Carbide |
| Thickness | 2.38mm |
| MFR Part No. | C22GUX NK5050 |
| Clearance Angle | 7\u00b0 |
| Finish/Coating | TiN |
| Shape | 80\u00b0 Rhombic |
| Material Application | Ferrous |
| Manufacturer Grade | QM10 |
| Corner Radius | 0.2 |
| Cutting Direction | Neutral |
