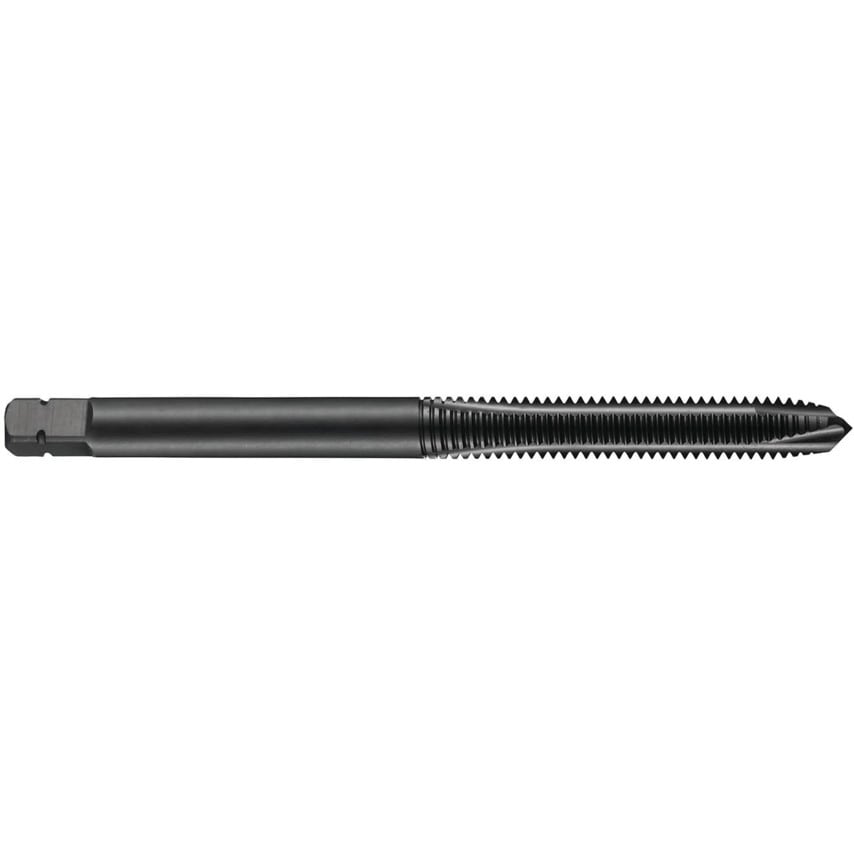

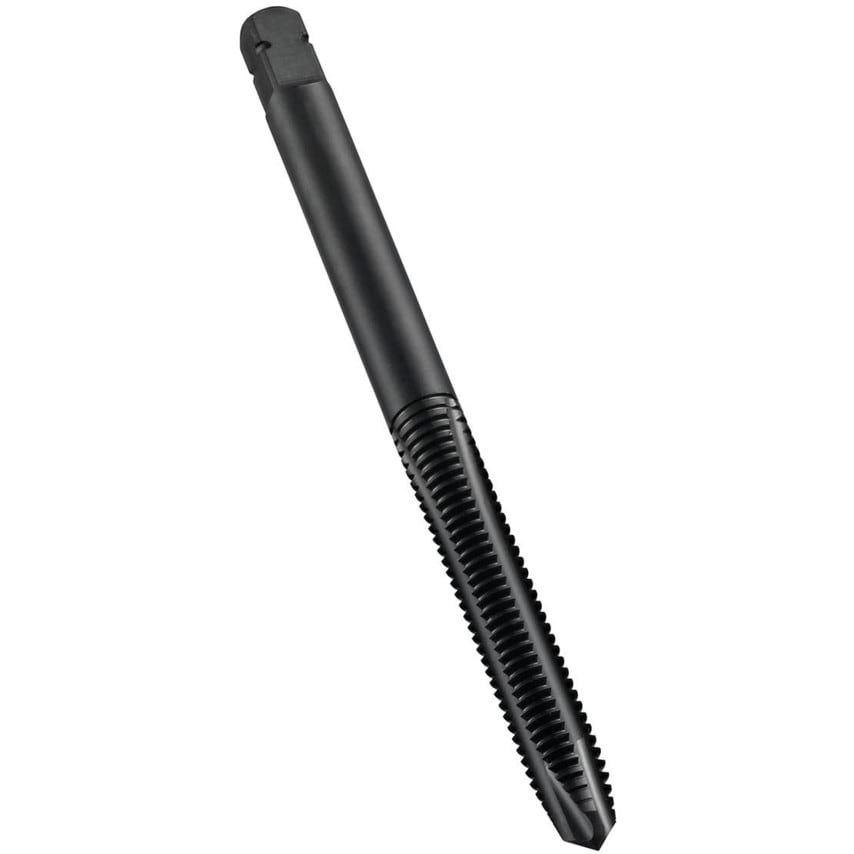

Series E001 HSS-E Spiral Point Taps - Metric
Steam Tempered Metric
Multi-application machine taps offering superb performance in a wide range of materials.
Programme includes DIN and ISO standard taps each with a choice of finishes: Bright, Steam Tempered or Titanium Nitride Coated (TiN).
Wide selection of different thread forms: Metric, Metric Fine, UNC, UNF and (G)BSP.
Available with either spiral point (for through holes) or spiral flute (for blind holes) geometries.
Steam tempered suitable for steel, stainless steel and cast iron.
| Tapping Depth | 34.0mm |
| Thread Length | 18.0mm |
| Material | Cobalt High Speed Steel |
| Finish/Coating | Steam Tempered |
| Thread Standard | Metric Coarse |
| Thread Size | M10 |
| Shank Diameter | 10.0mm |
| Material Grade | M35 |
| Product Type | Machine Taps |
| Dimensions Standard | ISO 529 |
| Series | E001 |
| Number of Flutes | 3 |
| Overall Length | 80.0mm |
| MFR Part No. | E001M10 |
| Pitch | 1.50 |
| Square Width | 8.0mm |
| Class of Fit | 6H |
| Tap Type | Spiral Point |
| Thread Direction | Right Hand |
