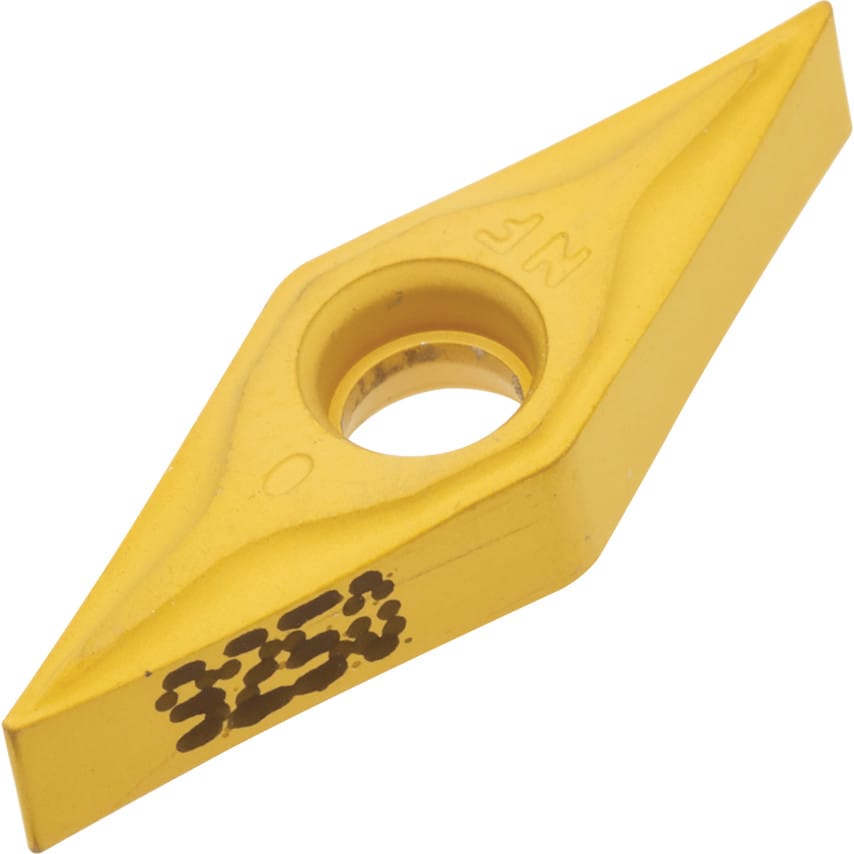

VNMG Turning Inserts are 35 rhombic inserts with a negative (0) relief angle, double-sided cutting edges. A hard carbide construction with a TiCN+alpha Al2O3+TiN coating for semi-finishing and finish machining of most materials.
Features and Benefits
Hard carbide construction for added tool hardness
TiCN+alpha Al2O3+TiN coating for increased heat and wear resistance
Ideal for finishing and semi finishing applications
Standards
Insert Grade IC9250
ISO Range - (P10-P35)(M05-M20)
| Inscribed Circle | 7.15mm |
| ISO Designation | VNMG 12T302-NF |
| ISO Cut | M05 to M20 | P10 to P35 |
| Cutting Direction | Neutral |
| Finish/Coating | Al2O3+TiCN+TiN |
| Pack Quantity | 1 |
| Manufacturer Grade | IC9250 |
| Thickness | 3.97mm |
| Chipbreaker | NF |
| MFR Part No. | 5507310 |
| Insert Size | 12T302 |
| Corner Radius | 0.2 |
| Insert Style | VNMG |
| Cutting Edge Length | 12.4mm |
| Material | Carbide |
| Shape | 35\u00b0 Rhombic |
| Clearance Angle | 0\u00b0 |
| Material Application | Stainless Steels | Steels |
| ISO Category Grade | M | P |
| ISO Category | M | P |
