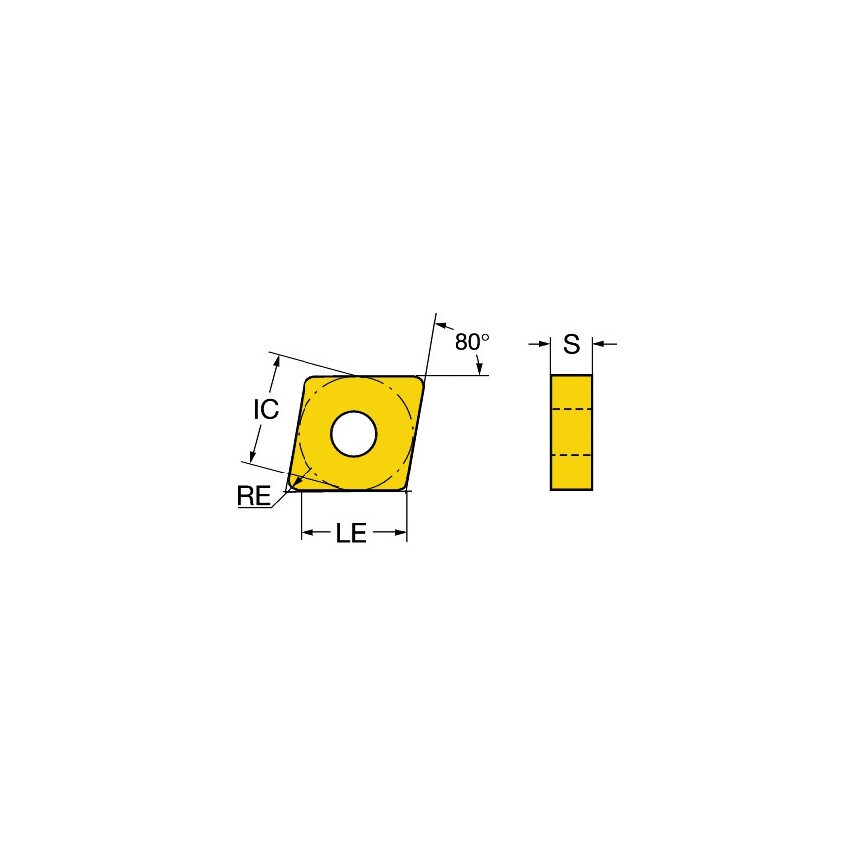

CNMG 120408
M25-M45, P25-P45. A tri-phase coating on an extra strong, cobalt-enriched substrate. For heavy cutting of low, medium, and high carbon steels, as well as medium hardness alloy and tool steels. Excellent thermal and mechanical shock resistance makes this grade ideally suited for difficult interrupted cuts.
| Material | Carbide |
| Corner Radius | 0.8 |
| ISO Cut | M25 to M45 |
| ISO Category | M | P |
| Insert Style | CNMG |
| MFR Part No. | 1160179 |
| Finish/Coating | TiC/TiCN/TiN |
| Manufacturer Grade | KC850 |
| ISO Designation | CNMG 120408 |
| Cutting Edge Length | 12.9mm |
| Shape | 80\u00b0 Rhombic |
| Inscribed Circle | 12.7mm |
| Product Type | Inserts |
| Pack Quantity | 1 |
| Clearance Angle | 0\u00b0 |
| Insert Size | 120408 |
| ISO Category Grade | M |
| Thickness | 4.76mm |
| Material Application | Stainless Steels |
