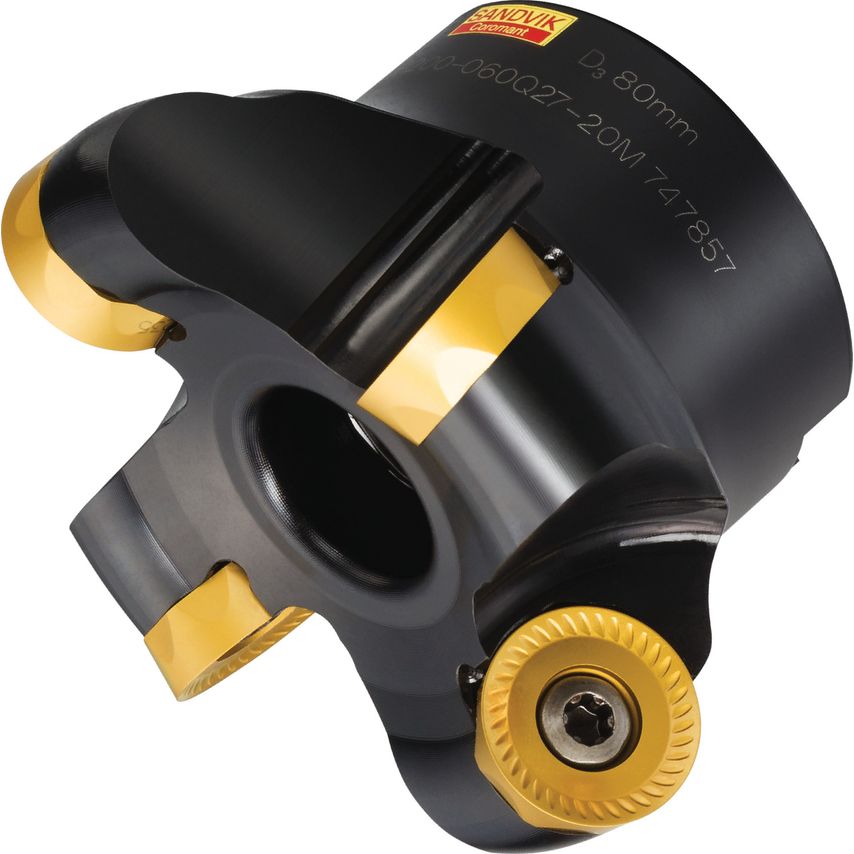

Tool type: Face millingRobust face milling and profile cutterCoroMill 200 is a very stable rougher and a versatile tool. It is a good choice for general milling as well as for die and mould-making and should be the first choice for roughing operations. Strong cutting edges make the cutter resistant to tough conditions with interruptions (holes, gaps etc.) and/or abrasive scale (skin).Features & Benfits- Round insert concept for secure first stage machining- 4 - 8 cutting edges- Shim for security- Cylindrical shank, Arbor, CIS Arbor, Whistle Notch or Weldon mounting- Process security and reliability
| Unit Measured | Metric |
| Hand Preference | Right |
| Cutting Diameter | 150mm |
| Standards Met | ISO6462 |
| Weight | 0.66kg |
| Rotational Speed Maximum | 14000 1/min |
| Body Material | Steel |
| Maximum Plunge Depth | 3.7mm |
| Functional Length | 50mm |
| CoroPak | 52 |
| Body Diameter | 3.15in |
| Connection Diameter | 6mm |
| MFR Part No. | 10911051 |
| Coolant Entry Style | Without Coolant |
| Damping Property | No |
| Through Hole Function Property | Yes |
| Maximum Cutting Diameter | 80mm |
| Maximum Ramping Angle | 3.5\u00b0 |
